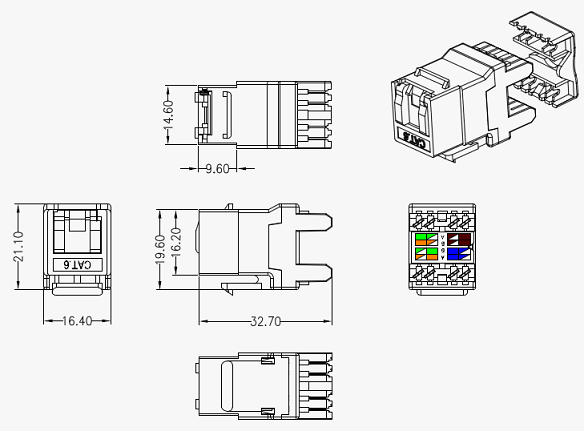

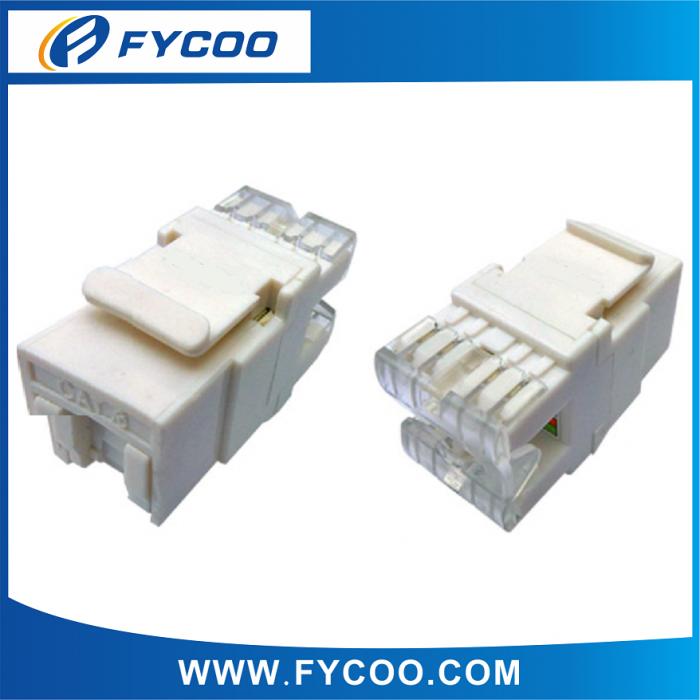

Name:	Cat.6 UTP 180° Keystone Jack with dustproof shutter
Model NO.	FCKJ6U029

Cat.6 UTP 180° Keystone Jack with dustproof shutter factory

ELECTRICAL：

1.VOLTAGE RATING : 125 VAC RMS

2.CURRENT RATING : 1.5 AMP

3.CONTACT RESISTANCE : 100 MILLIOHMS MAX

4.INSULATION RESISTANCE : 1000 MEGOHMS MIN @ 500 VDC

5.DIELECTRIC STRENGTH : 750 VAC RMS 60Hz,1MIN

6.C6 PERMANENT LINK : CONFORM TO ANSI/TIA/EIA-568 B.2-1

ENVIRONMENTAL:

1.STORAGE : -40° TO +85°

2.OPERATION : 0° TO 70°

MATES WITH MODULAR PLUG CONFORMING TO FCC PART 68,SUBPART F.

MECHANICAL:

1.HOUSING MATERIAL : PC UL94V-0

2. INSERT MATERIAL : FLAME RETARDANCY ABS UL94V-0

3. PCB MATERIAL : FR-4 THICKNESS:1.6mm

4. CONTACT MATERIAL : PHOSPHOR BRONZE STAMP PIN T=0.35mm

5. IDC CONTACT MATERIAL : PHOSPHOR BRONZE T=0.50mm WITH NICKEL PLATING

6. WIRE : AWG 24~26
