Name:UTP Cat.6 Keystone Jack 180 degree (Short Type)
Model NO.FCKJ6U030

Product Description

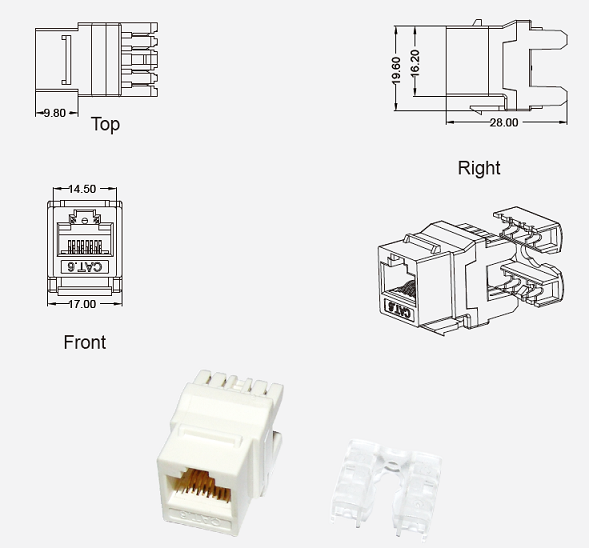

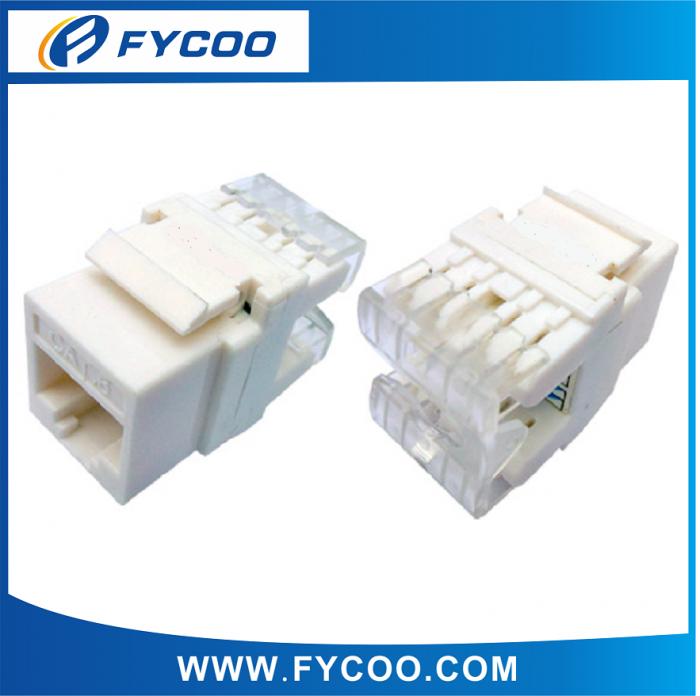

UTP Cat.6 Keystone Jack 180 degree (Short Type)

Description:
1.Keystone Jack, CAT6 Class E. UTP Type, 180 degree punching
direction, for connecting application of communication ports
in working area.
2.A compact & ingenious designing, with the punching sequence
direction marks on the sides of keystone jack. That can provides
a correct and quick guide for punching and connecting operation.
And the fastener hats will make sure the cable can be fixed
reliably in the IDC clips.
3.According to the ISO/IEC 11801;2002 CLASS & ANSI/TIA/
EIA568-B.2-1CAT.6  T568A punching sequence and T568B
punching sequence are both compatible.
4.Connection Type: FCC connector for RJ45 patch cord and
IDC for 4-pair Cat.6 cables.
5.Fit for the CAT.6 general cable distribution system. Compatible
for Cat.5 and Cat.5e systems.

Technique Characteristics:
1.Material of plastic parts : PC UL94V-0.
2.Material of the FCC connectors' 8 pin: Phosphor Bronze with
golden cladding.  Insertion Dependability: 750 times.
3.Material of the IDC Clips: Tinned phosphor bronze pins. Fit
for 22AWG/23AWG/24AWG Cables. Punching Short Type_;
4.Dependability: 250 times
5.Standard 110 Punching tool.
