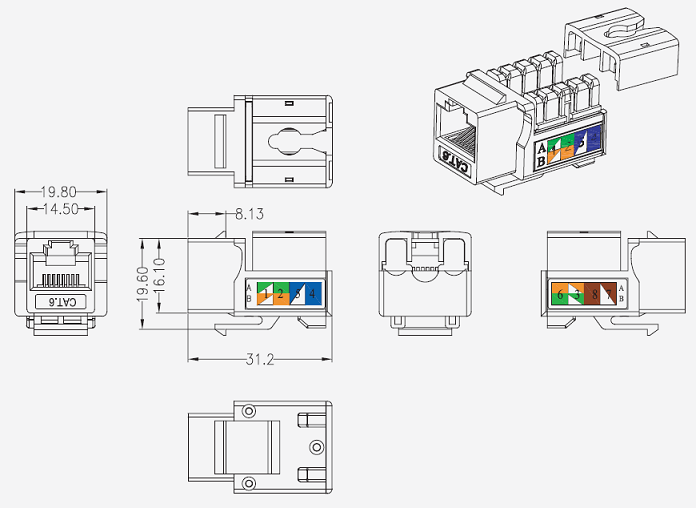

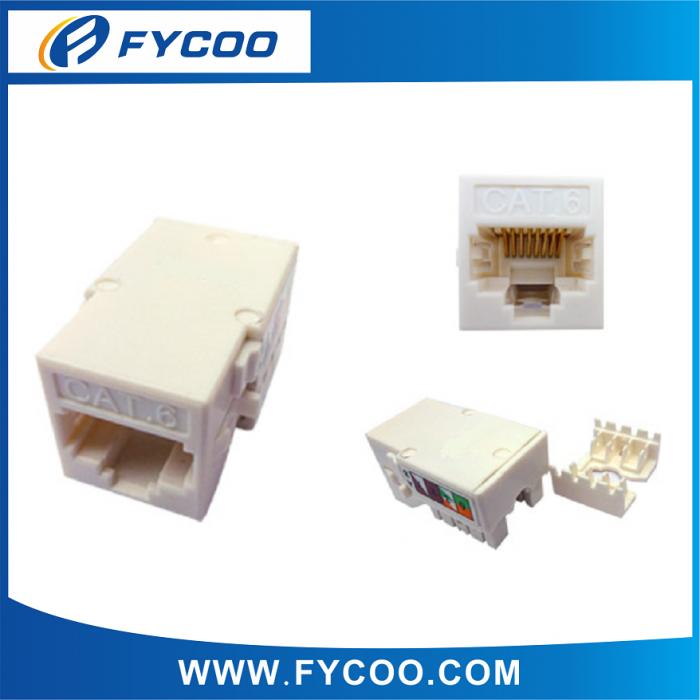

CAT.6 UTP 90° Keystone Jack

ELECTRICAL:

1.VOLTAGE RATING: 125 VAC RMS

2.CURRENT RATING: 1.5 AMP

3.CONTACT RESISTANCE: 100 MILLIOHMS MAX

4.INSULATION RESISTANCE : 1000 MEGOHMS MIN @ 500 VDC

5.DIELECTRIC STRENGTH: 750 VAC RMS 60Hz,1MIN

6.C6 PERMANENT LINK: CONFORM TO ANI/TIA/EIA-568 B.2-1

ENVIRONMENTAL:

1.STORAGE: -40° TO +85°

2.OPERATION: 0° TO 70°

MATES WITH MODULAR PLUG CONFORMING TO FCC PART 68,SUBPART F

MECHANICAL:

1.HOUSING MATERIAL: PC UL94V-0

3.INSERT MATERIAL: FLAME RETARDANCY ABS UL94V-0

4.PCB MATERIAL: FR-4 THICKNESS:1.6mm

5.CONTACT MATERIAL: PHOSPHOR BRONZE STAMP PIN T=0.35mm

6.IDC CONTACT MATERIAL: PHOSPHOR BRONZE T=0.50mm NICKEL PLATING

7.WIRe: AWG 24~26
