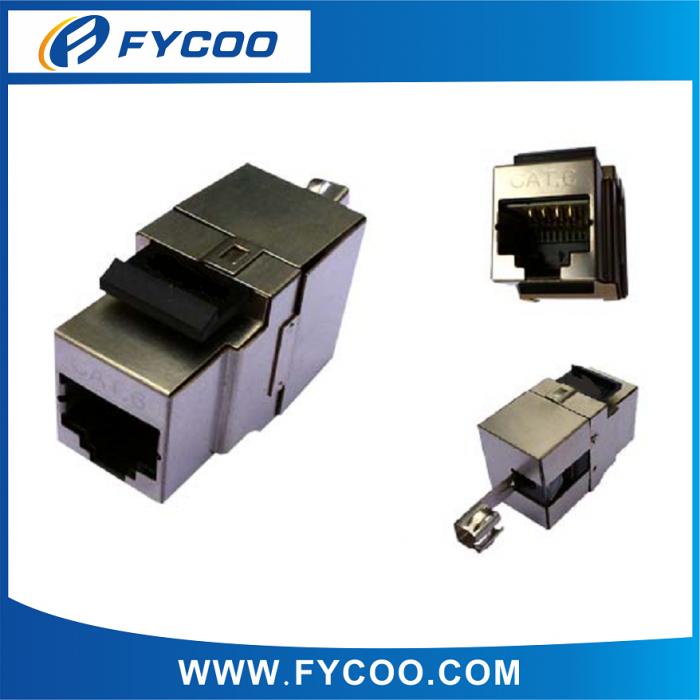

Name:	Cat.6 FTP Keystone Jack for Cat6 Shielded10 Gigabit Ethernet Solution
Model NO.:	FCKJ6F032

Cat6 FTP Keystone Jack for Cat6 Shielded10 Gigabit Ethernet Solution

Feature:

1. Housing : high temperature thermoplastic

2. Covered with metal that provides well anti-EMI performance

3.Contract : phosphor bronze , phosphor bronze with 6 to 50 u " gold plate .

4.Available in Cat6,T568 A ,T568 B wiring .meeting every cabling

Requirement

5.Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6 mm

6. Easy to be terminated Low attenuation loss and high return loss .

7. High reliability and superior performance .

8.90 degrees RJ45 Cat.6 type full shielded type

9. Keystone jack more than 1000 operating cycles

10.Full shielding design makes data transferring much faster

ELECTRICAL:

1.VOLTAGE RATING: 125 VAC RMS

2.CURRENT RATING: 1.5 AMP

3.CONTACT RESISTANCE: 100 MILLIOHMS MAX

4.INSULATION RESISTANCE : 1000 MEGOHMS MIN @ 500 VDC

5.DIELECTRIC STRENGTH: 750 VAC RMS 60Hz,1MIN

6.C6 PERMANENT LINK: CONFORM TO ANI/TIA/EIA-568 B.2-1

ENVIRONMENTAL:

1.STORAGE: -40° TO +85°

2.OPERATION: 0° TO 70°

MATES WITH MODULAR PLUG CONFORMING TO FCC PART 68,SUBPART F

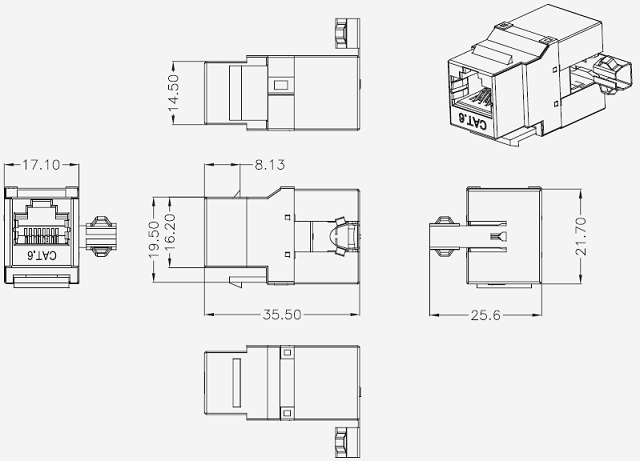

MECHANICAL:

1.SHIELD MATERIAL: BRASS T=0.30mm NICKEL PLATING

2.HOUSING MATERIAL: PC UL94V-0

3.INSERT MATERIAL: FLAME RETARDANCY ABS UL94V-0

4.PCB MATERIAL: FR-4 THICKNESS:1.6mm

5.CONTACT MATERIAL: PHOSPHOR BRONZE STAMP PIN T=0.35mm

6.IDC CONTACT MATERIAL: PHOSPHOR BRONZE T=0.50mm NICKEL PLATING

7.WIRe: AWG 24~26
