Name:	SC Fiber Optic Adapter

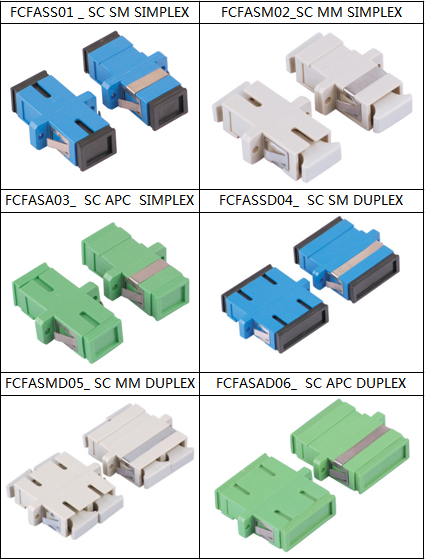

FCFASS01	SM SIMPLEX
FCFASM02	MM SIMPLEX
FCFASA03	APC SIMPLEX
FCFASSD04	SM DUPLEX
FCFASMD05	MM DUPLEX
FCFASAD06	APC DUPLEX

Product Description

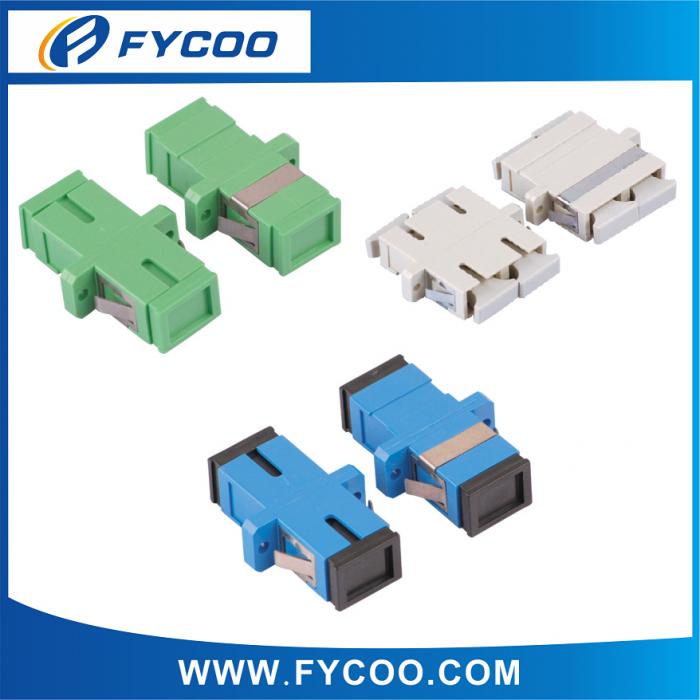

SC type Fiber Optic Adapter

SPECIFICATION:

PARAMETER TABLE:

Type	SC
Housing Material	Metal
Insertion loss	≦ 0.20 dB
Interchangeability	≦ 0.20 dB
Repeatability	≦ 0.20 dB
Mechanical durability	1000 Cycles
Operating temperature	-40°C to +80°C

DESCRIPTION:

1.SC/APC Single-mode Duplex Fiber Optic Adapter

2.All parts are ROHS compliant;

3.Durability: ≤0.2dB typical change, 1,000 matings

4.Zirconia sleeves or Phosphor bronze sleeves

5.Easy installation;

6.Pass the Inspection of the protective performance from the Quality Supervision & Inspection Cente

7.High precision mechanical dimensions.

APPLICATIONS:

1.Optical Distribution Frame

2.Testing Instruments

3.Optical fiber communication system interface

4.FTTH, FTTP, FTTX, FTTR

Pre:ST Fiber Optic Connector Next:LC Fiber Optic Adapter
