Location:Index--->Product Center >> FO Connector & Adapter >> LC Fiber Optic Adapter

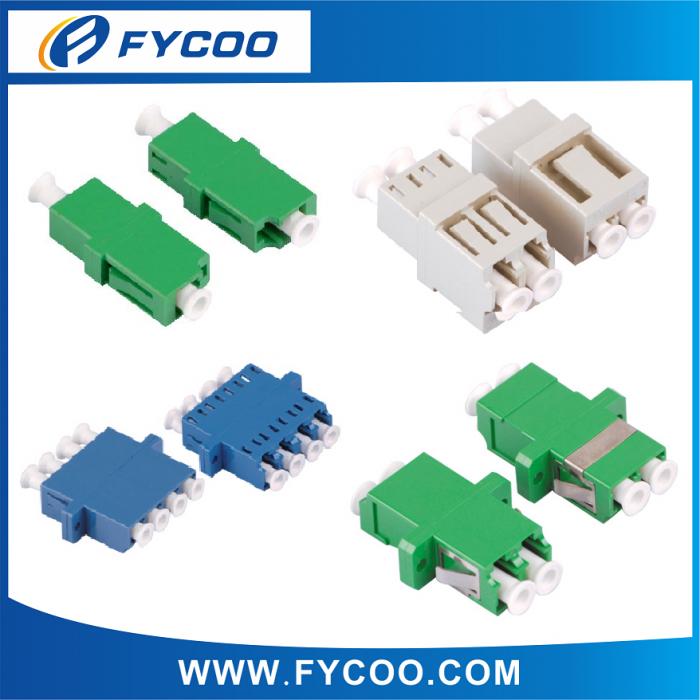

Name:	LC Fiber Optic Adapter

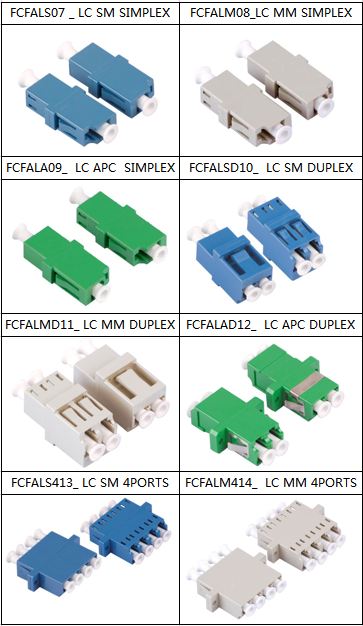

FCFALS07	LC SM SIMPLEX
FCFALM08	LC MM SIMPLEX
FCFALA09	LC APC SIMPLEX
FCFALSD10	LC SM DUPLEX
FCFALMD11	LC MM DUPLEX
FCFALAD12	LC APC DUPLEX
FCFALS413	LC SM 4PORTS
FCFALM414	LC MM 4PORTS

Product Description

LC type Fiber Optic Adapter

SPECIFICATION:

PARAMETER TABLE:

Type	LC
FLange Type	SC-cutout/Rectangle
Sleeve	ZrO2/PH
Insertion loss	≦ 0.20 dB(SM) ≦ 0.20 dB(MM)
Interchangeability	≦ 0.20 dB
Repeatability	≦ 0.20 dB
Mechanical durability	1000 Cycles
Operating temperature	-40°C to +80°C

DESCRIPTION:

1.LC Adapter series

2.All parts are ROHS compliant;

3.Durability: ≤0.2dB typical change, 1,000 matings

4.Low insertion loss

5.Increases panel density and quick plug in installation;

6.Pass the Inspection of the protective performance from the Quality Supervision & Inspection Cente

7.High precision mechanical dimensions.

APPLICATIONS:

1.Optical Distribution Frame

2.Testing Instruments

3.Optical fiber communication system interface

4.FTTH, FTTP, FTTX, FTTR
