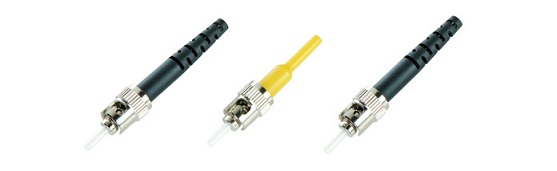

Name:ST Fiber Optic Connector
FCFCTS10SM,SIMPLEX 0.9MM/2.0MM/3.0MM
FCFCTM11MM,SIMPLEX 0.9MM/2.0MM/3.0MM

Product Description

ST Fiber Optic Connector



SPECIFICATION:
1.Low insertion loss and back reflection loss
2.Ferrule end surface pre-domed
3.High precision alignment
4.Nickel plated brass body
5.Free-floating ceramic ferrule
6.Bayonet style housing for easy termination

APPLICATIONS:
Gigabit Ethernet; Active device termination; Telecommunication networks; Video; Multimedia; Industrial; Military; Premise installations;

PARAMETER TABLE:



Single mode Multimode

Insertion loss:

0.2dB                          0.3dB

Return loss:

55dB



65dB(APC)

Durability:

0.1dB typical change,   500 mating

Operating Temperature:

-40 to +75                   -40 to +75


ORDERING CHOICE:
1.ST SM SX PC
MM DX APC
2.Ferrule size: 125.0μm, 125.3μm, 125.5μm 126.0μm, 127.0μm, 128.0μm
3.Housing material: metal; plastic

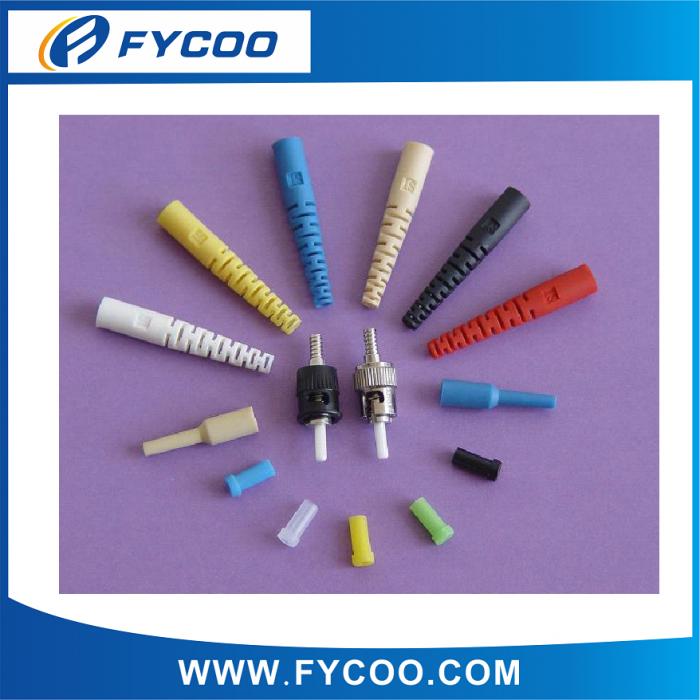

4.Boot type:  slotted boot, smooth boot.
5.Boot size: 0.9mm; 2.0mm; 3.0mm
6.Boot color:Beige; Black; Blue; Grey; Red; White; Yellow
