Product Description
GJFJV(Y) Indoor Fiber Optic Cable-Multi Purpose Distribution Cables
SPECIFICATION:
This specification covers a series of cables with 2 to 12 fibers. The cable fulfils the fire performance test of IEC332-1 and IEC332-3C.
APPLICATION:
1.For premises wiring
2.Indoor
3.Internal wiring

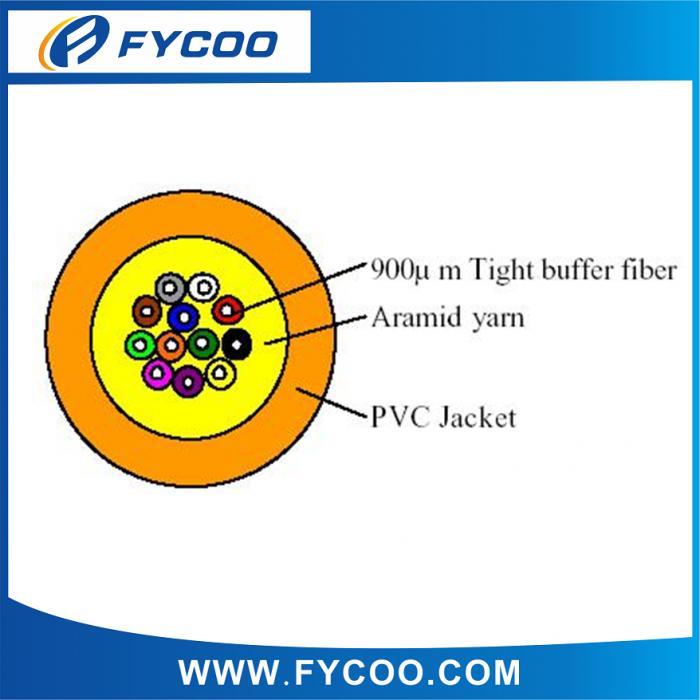

CONSTRUCTION DATA:
Tight buffer fiber diameter 900+/-50um Tight buffered fiber color 1. Blue 2. Orange 3. Green 4. Brown 5. Grey 6. White 7. Red 8. Black 9 Yellow 10. Violet 11. Pink 12. Aqual Core reinforce Aramid yarn Out jacket material PVC
TECHNICAL DATA-PHYSICAL
Fiber count 2 4 6 8 10 12 Cable diameter (mm) 3.2 4.8 5.1 5.6 5.8 6.2 Cable weight (kg/km) 16 18.6 22.6 25.2 31.8 33.4 Temperature rating -20 ~+60℃ Operation storage -20 ~+60℃
TECHNICAL DATA-MECHANICAL:
Max. loading (IEC794-1) Installation operation 660N 200N Min. bend radius (IEC794-1) Long term (mm) Short term (mm) 20xD 10xD Crush resistance (IEC794-1) 1000N/100mm
TECHNICAL DATA-TRANSMISSION:
Fiber type Single-mode (1310/1550nm) Multi-mode (50/125um) (850/1300nm) Multi-mode (62.5/125um) (850/1300nm) Attenuation Typical 0.36/0.22 3.0/1.0 3.0/1.0 Maximum 0.5/0.4 3.5/1.5 3.5/1.5 Zero dispersion slope <0.093ps/km•nm2 — — Dispersion (1285~1340nm) -3.5~ 3.5ps/ (nm•km) — — Mode field diameter 9.3+/-0.4um — — Cutoff wavelength cable <1270nm — — Bandwidth @850nm — ≥200MHz•km ≥160MHz•km @1300nm — ≥400MHz•km ≥200MHz•km Cladding diameter (um) 125+/-1.0 125+/-1.0 125+/-1.0
