Multi-Purpose Break-out Cables Indoor Fiber Optic Cable
SPECIFICATION:
This specification covers a series of cables with 2 to 12 fibers. The cable fulfils the fire performance test of IEC332-1 and IEC332-3C.
APPLICATION:
1.Backbone in LAN’s
2.Indoor/ outdoor in ducts
3.Internal wiring/ Fan-outs

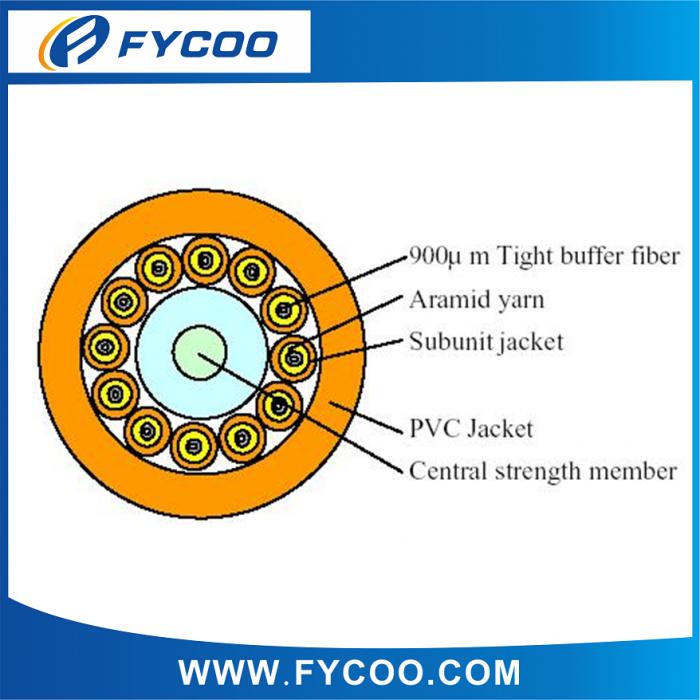

CONSTRUCTION DATA:
Tight buffer fiber diameter 900+/-50um Core reinforce Aramid yarn Break-out unit jacket material PVC Break-out color code The units have sequential numbering printed on the surface for identification Central strength member All dielectric Out jacket material PVC
TECHNICAL DATA-PHYSICAL
Fiber count 2 4 6 8 10 12 Cable diameter (mm) 7.2 7.2 8.2 9.6 10.7 12.2 Cable weight (kg/km) 45 45.2 62.5 85.9 109 140 Temperature rating -20 ~+60℃ Operation storage -20 ~+60℃
TECHNICAL DATA-MECHANICAL:
Max. loading (IEC794-1) Installation operation 660N 200N Min. bend radius (IEC794-1) Long term (mm) Short term (mm) 20xD 10xD Crush resistance (IEC794-1) 1000N/100mm
TECHNICAL DATA-TRANSMISSION:
Fiber type |
Single-mode (1310/1550nm) |
Multi-mode (50/125um) (850/1300nm) |
Multi-mode (62.5/125um) (850/1300nm) |
|
Attenuation |
Typical |
0.36/0.22 |
3.0/1.0 |
3.0/1.0 |
Maximum |
0.5/0.4 |
3.5/1.5 |
3.5/1.5 |
|
Zero dispersion slope |
<0.093ps/km•nm2 |
— |
— |
|
Dispersion (1285~1340nm) |
-3.5~ 3.5ps/ (nm•km) |
— |
— |
|
Mode field diameter |
9.3+/-0.4um |
— |
— |
|
Cutoff wavelength cable |
<1270nm |
— |
— |
|
Bandwidth |
@850nm |
— |
≥200MHz•km |
≥160MHz•km |
@1300nm |
— |
≥400MHz•km |
≥200MHz•km |
|
Cladding diameter (um) |
125+/-1.0 |
125+/-1.0 |
125+/-1.0 |
