Name:	GJFJV Indoor Fiber Optic Cable-Simplex Cables
Model NO.	GJFJV

Product Description

GJFJV Indoor Fiber Optic Cable-Simplex Cables

SPECIFICATION:

This specification covers a Φ2.8mm orΦ2.0mm single fiber cable with a 900um tight buffered fiber and aΦ1.6mm single fiber cable with a 600um tight buffered fiber.

APPLICATION:

1.For premises wiring

2.Indoor

3.Internal wiring

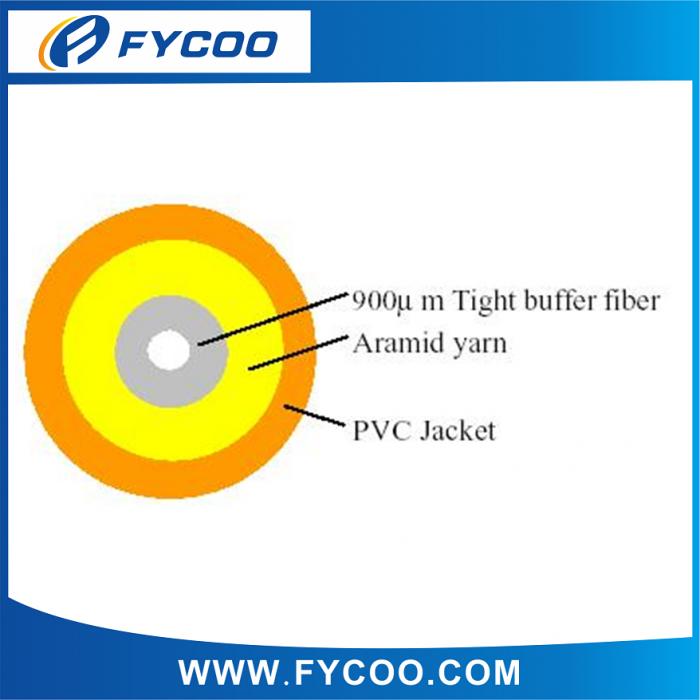

CONSTRUCTION DATA:

Tight buffer fiber diameter	600+/-50um for 1.6mm cable/ 900+/-50um for 2.0mm, 2.8mm cable
Core reinforce	Aramid yarn
Out jacket material	PVC

TECHNICAL DATA-PHYSICAL

Cable diameter (mm)	1.6	2.0	2.8
Cable weight (kg/km)	3.3	4.2	6.4
Temperature rating	-20 ~+60℃
Operation storage	-20 ~+60℃

TECHNICAL DATA-MECHANICAL:

Max. loading (IEC794-1) Installation operation

120N

60N

150N

80N

Min. bend radius (IEC794-1)

Long term (mm)

Short term (mm)

20xD

10xD

Crush resistance (IEC794-1)

50N/100mm

TECHNICAL DATA-TRANSMISSION:

Fiber type		Single-mode (1310/1550nm)	Multi-mode (50/125um) (850/1300nm)	Multi-mode (62.5/125um) (850/1300nm)
Attenuation	Typical	0.36/0.22	3.0/1.0	3.0/1.0
Attenuation	Maximum	0.5/0.4	3.5/1.5	3.5/1.5
Zero dispersion slope		<0.093ps/km•nm²	—	—
Dispersion (1285~1340nm)		-3.5~ 3.5ps/ (nm•km)	—	—
Mode field diameter		9.3+/-0.4um	—	—
Cutoff wavelength cable		<1270nm	—	—
Bandwidth	@850nm	—	≥200MHz•km	≥160MHz•km
Bandwidth	@1300nm	—	≥400MHz•km	≥200MHz•km
Cladding diameter (um)		125+/-1.0	125+/-1.0	125+/-1.0
