Product Description
GJFJBV Indoor Fiber Optic Cable _Zip-cord Cables
SPECIFICATION:
This specification covers a figure 8 construction with 2 tight buffer single fiber units. The cable fulfils the fire performance test of IEC332-1 and IEC332-3C.
APPLICATION:
1.Patch cord cable
2.Indoor/ point to point
3.Internal wiring

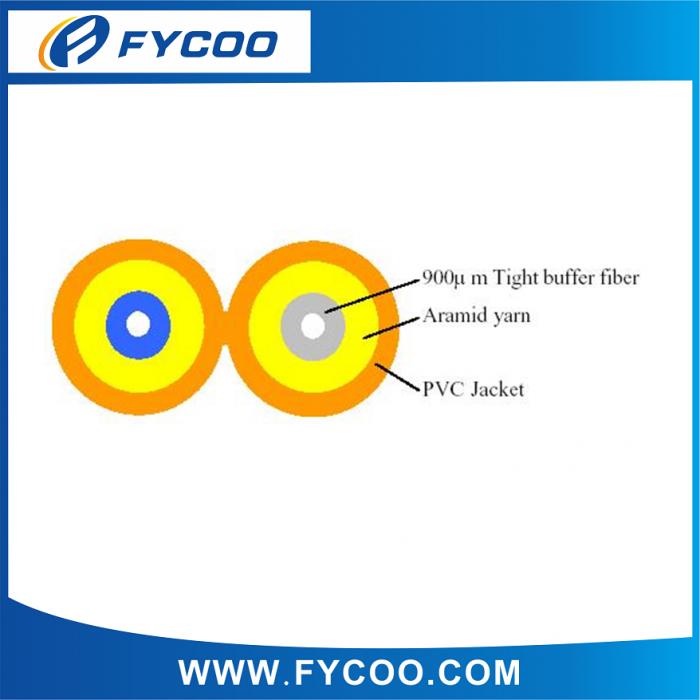

CONSTRUCTION DATA:
Tight buffer fiber diameter 600+/-50um for 1.6mm, 2.0mm cable/ 900+/-50um for 2.8mm cable Core reinforce Aramid yarn Out jacket material PVC
TECHNICAL DATA-PHYSICAL
Cable diameter (mm) 3.4x1.6 4.2x2.0 6.0x2.8 Cable weight (kg/km) 7.3 10.5 15.6 Temperature rating -20 ~+60℃ Operation storage -20 ~+60℃
TECHNICAL DATA-MECHANICAL:
Max. loading (IEC794-1) Installation operation 200N 100N 200N 100N Min. bend radius (IEC794-1) Long term (mm) Short term (mm) 20xH (Cable axis) 10xH (Cable axis) Crush resistance (IEC794-1) 1000N/100mm
TECHNICAL DATA-TRANSMISSION:
| Fiber type |
Single-mode (1310/1550nm) |
Multi-mode (50/125um) (850/1300nm) |
Multi-mode (62.5/125um) (850/1300nm) |
|
| Attenuation |
Typical |
0.36/0.22 |
3.0/1.0 |
3.0/1.0 |
| Maximum |
0.5/0.4 |
3.5/1.5 |
3.5/1.5 |
|
| Zero dispersion slope |
<0.093ps/km•nm2 |
— |
— |
|
| Dispersion (1285~1340nm) |
-3.5~ 3.5ps/ (nm•km) |
— |
— |
|
| Mode field diameter |
9.3+/-0.4um |
— |
— |
|
| Cutoff wavelength cable |
<1270nm |
— |
— |
|
| Bandwidth |
@850nm |
— |
≥200MHz•km |
≥160MHz•km |
| @1300nm |
— |
≥400MHz•km |
≥200MHz•km |
|
| Cladding diameter (um) |
125+/-1.0 |
125+/-1.0 |
125+/-1.0 |
|
