Product Description

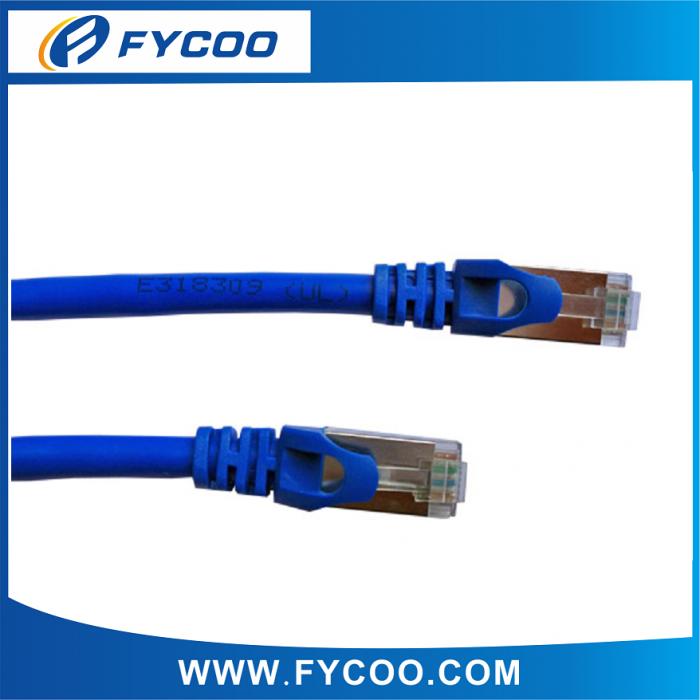

Cat.6 FTP Patch Cord
FEATURE:
Cat.6, FTP, 4PX24AWG+PVC+Foil+RJ45X2PCS, Gold plated pins, Pass fluke test, Different length optional
SPECIFICATION:
ITEM |
|
CAT6 FTP 7/0.20 patch cable |
No. of Cond. |
|
4 Pair |
Conductor |
Material |
Bare Copper Wire
Stranded |
|
Construction |
24AWG; 7 / 0.20 ± 0.008
mm |
Insulation |
Material |
Polyethylene |
|
thickness |
0.19±0.02 mm |
|
Diameter |
0.98 ± 0.05 mm |
Inner Layer |
Direction |
S |
|
Pitch REF |
30mm underneath |
Outside Layer |
Direction |
S |
|
Pitch REF |
100±10mm |
Cross |
Material |
Polyethylene |
|
Diameter |
4.0×4.0 ± 0.1 mm |
Shielding1 |
Material |
Mylar
Spirally Wrapped |
|
Coverage |
100%
coverage with 25%
overlapping |
Drain Wire |
Material |
Aluminum Magnesium metal |
|
Construction |
1 / 0.40 ±
0.008 mm or 7/0.12± 0.008 mm |
Shielding2 |
Material |
Aluminum Mylar
Spirally Wrapped |
|
Coverage |
100%
coverage with 25%
overlapping,face inside |
|
Material |
PVC |
Jacket |
thickness |
0.50 mm(Min.
Thichness: 0.40mm) |
|
Diameter |
6.3 ± 0.20
mm |
|
Color |
optional |
marking |
optional |
|
ELECTRICAL
PROPERTIES |
|
|
Insulation Resistance |
Min. 5000 mega
ohms-km at 20℃ |
|
Dielectric Test |
1000V DC /1 min
; No Breakdown |
|
Temperature Rating |
60℃ |
|
Voltage Rating |
30V |

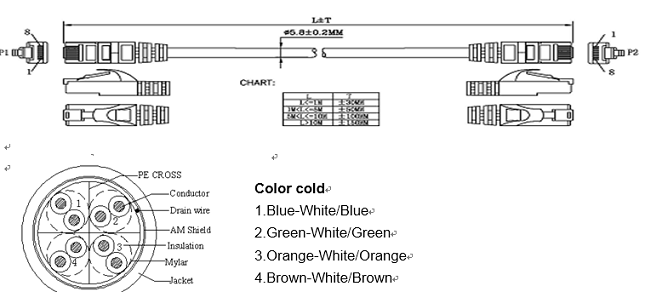

DRAWING:

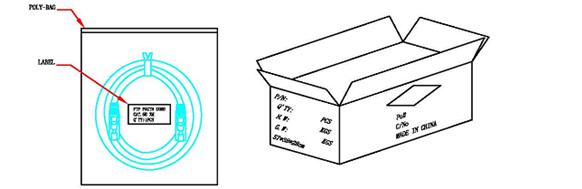

PACKING:
