Product Description

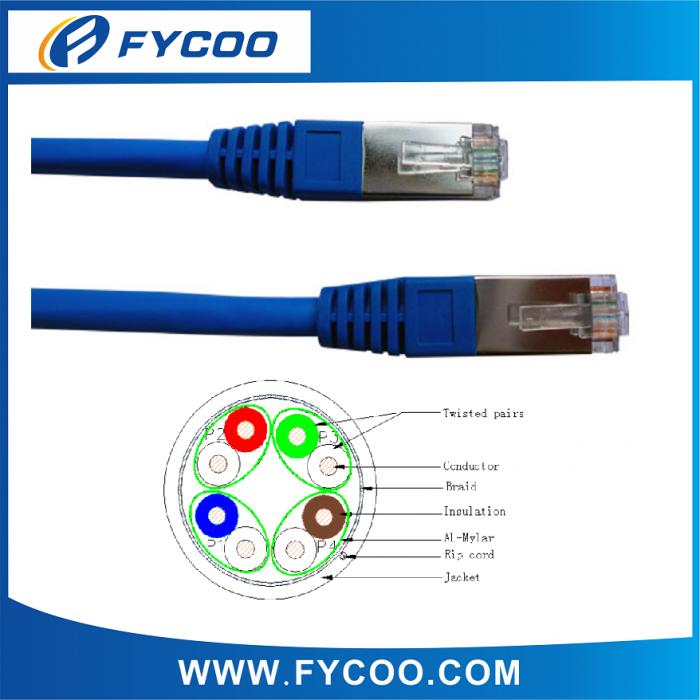

Cat.6A FTP Patch Cord
FEATURE:
Cat.6A 600-MHz Shielded Stranded Patch Cable (S/FTP), PVC, Gold plated pins, Pass fluke test, Different length optional
SPECIFICATION:
Conductor: Bare Copper
4 Twisted Pair: 8C
AWG: 23
Construction (MM): 1/0.57
Stranded Dia.(MM): 0.57±0.008
Insulation: Form-Skin PE
Nom.Thickness (MM): 0.235±0.02
Insulation Dia.( ±0.05): 1.4
Shield/Braid: AL-Mlary and tinded (AL/MY)
Jacket: PVC
Nom.Thickness (MM): 0.6
Outer Dia.( ±0.3MM): 7.6
Insulation Cores:Pairs
TWIST PAIR COLOR:
P1:BL & WH P2:OR & WH
P3:GN & WH P4:BRN & WH
ELECTRICAL CHARACTERISTICS(20℃)
MAX.CONDUCTOR DC RESISTANCE ( ohm/KM): #23 93.8
INSULATION RESISTANCE: Min.5000MΩ*km
DIELECTRIC STRENGTH: 1000V dc/ 2 seconds
RESISTANCE UNBALANCE:MAX 2%
CAPACITANCE UNBALANCE:MAX. 160PF/100M
INPUT IMPEDANCE: 1-100MHZ 100+/-15ohm
100-250MHz 100+/-22ohm ;250-500MHz 100+/-22ohm
MEAN CHARATRERISTIC IMPEDANCE@100MHZ: 100+/-15 OHMS
NOMINALE VELOCITY OF PROPAGETION(NVP) 75+/-2%
PROPAGATION DELAY @ 100MHZ ≧537.6 ns/100M
PROPAGATION DELAY SKEW:MAX. ≧45ns/100M
F(MHZ) |
ATT(dB), MIN |
PSNEXT(dB),MIN |
NEXT(dB),MIN |
|
1 |
2.1 |
72.3 |
74.3 |
|
10 |
5.9 |
57.3 |
59.3 |
|
100 |
19.1 |
42.3 |
44.3 |
|
200 |
27.6 |
37.8 |
39.8 |
|
250 |
31.1 |
36.3 |
38.3 |
|
300 |
34.3 |
35.1 |
37.1 |
|
400 |
40.1 |
33.3 |
35.3 |
|
500 |
45.3 |
31.8 |
33.8 |
|
Physical Properties |
Insulation |
Tens strength(before aging) |
Kgf/mm2 |
>0.816 |
Tens strength(after aging) |
Kgf/mm2 |
|
||
Elongation(before aging) |
% |
>100% |
||
Elongation(after aging) |
% |
|
||
Jacket |
Tens strength(before aging) |
Kgf/mm2 |
>1.407 |
|
Tens strength(after aging) |
Kgf/mm2 |
>75% |
||
Elongation(before aging) |
% |
>100% |
||
Elongation(after aging) |
% |
>50% |
||
Conductor Resistance |
Ω/km |
<98 |
||
20℃ |
||||
Insulation shrinkback |
|
121℃ x1hr |
||
Insulation cold bend |
|
-20℃x4hr |
||
Jacket cold bend |
|
-20℃x4hr |
