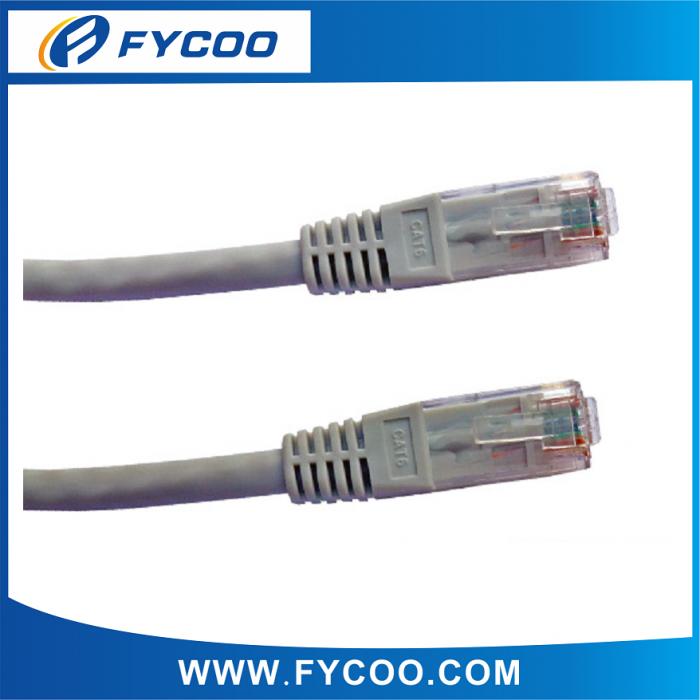

Cat.6 UTP Patch Cord

FEATURE:

Cat.6, UTP, 4PX24AWG+cross+PVC+RJ45X2PCS, Gold plated pins, Pass fluke test, Different length optional

SPECIFICATION:

ITEM		CAT6 UTP 7-0.20BC patch cable
No.of Cond.		4 Pair
Conductor	Material	Bare Copper Wire Stranded
	Construction	24AWG; 7 / 0.20 ± 0.008 mm
Insulation	Material	Polyethylene
	Thickness	0.20±0.02 mm
	Diameter	0.95 ± 0.05 mm
Inner Layer	Direction	S
	Pitch REF	30mm underneath
Outside Layer	Direction	S
	Pitch REF	100±10mm
Cross	Material	Polyethylene
	Diameter	4.0×4.0 ± 0.1 mm
	Material	PVC
Jacket	thickness	0.50 mm(Min. Thichness: 0.40mm)
	Diameter	6.0 ± 0.20 mm
	Color	optional
Marking	optional
ELECTRICAL PROPERTIES
Insulation Resistance		Min. 5000 mega ohms-km at 20℃
Dielectric Test		1000V DC /1 min ; No Breakdown
Temperature Rating		60℃
Voltage Rating		30V
Others		Pass the fluke channel testing

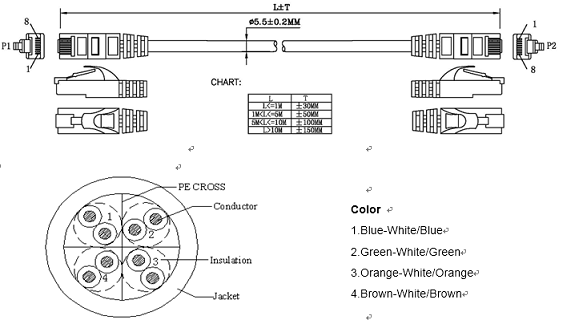

DRAWING:

PACKING:
