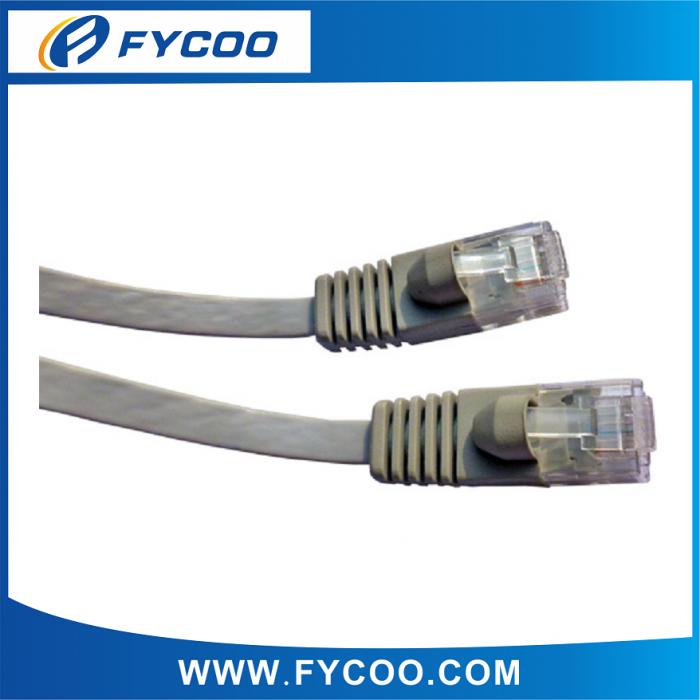

Name:Cat.5e UTP Flat Patch Cord
Model NO.FCPC5U003

Product Description

Cat.5e UTP Flat Patch Cord

FEATURE:

Cat.5e flat cable, UTP, 4PX30AWG+PVC+RJ45X2PCS, Gold plated pins, Pass fluke test, Different length optional


SPECIFICATION:

ITEM



CAT5E UTP 7/0.20BC flat patch cable

No. of   Cord.



4  Pair

Conductor

Material

Bare  Copper  Wire  Stranded



Construction

30AWG; 7 / 0.20 ± 0.008  mm

Insulation

Material

Polyethylene



Thickness

0.18±0.02  mm



Diameter

0.95 ± 0.05 mm



Material

PVC

Jacket

Thickness

0.50  mm(Min. Thichness: 0.48mm)



Diameter

 1.8*6.0mm,



Color

optional



Lenght

optional

Marking

optional



ELECTRICAL  PROPERTIES



Conductor Resistance



Max.  93.8  ohms/km at 20

Insulation Resistance



Min.  100  mega  ohms-km at 20

Dielectric Test



500V AC /1 min  ; No Breakdown

Impedance



100 ohms ± 15%

Temperature Rating



60

Voltage Rating



30V

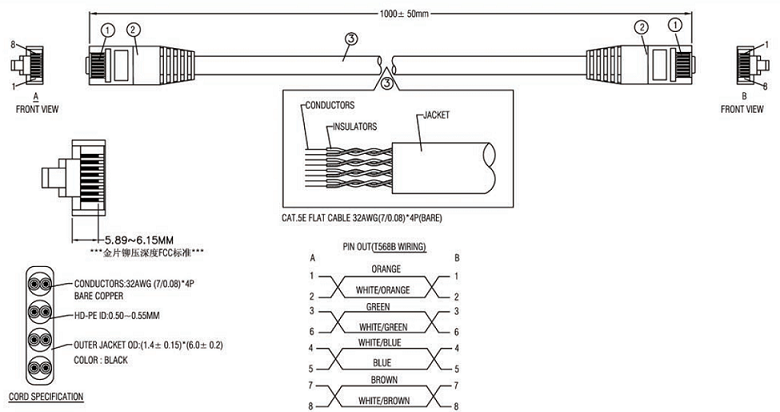

DRAWING:
