Name:Cat.5e UTP 25pairs Cable
Model NO.FCNC525008

Product Description

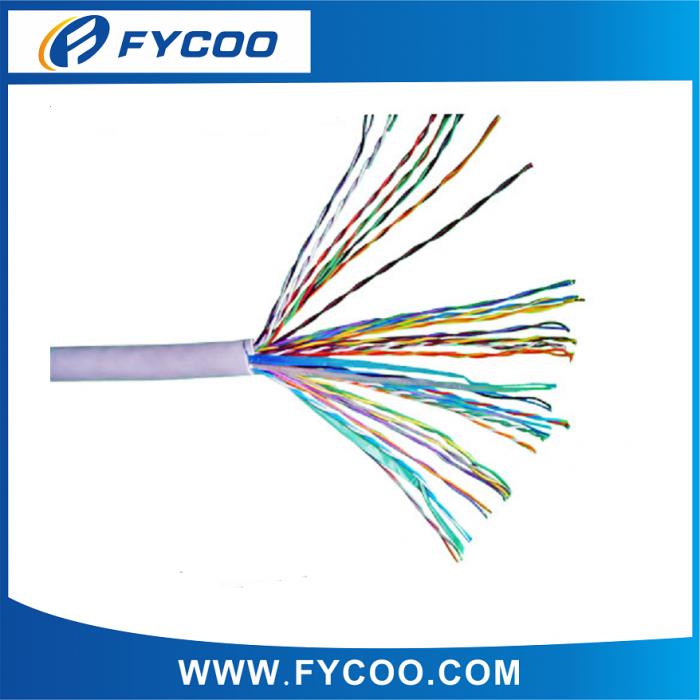

Cat.5e UTP 25pairs Cable

FEATURE:

Multi-Pair Lan Cable
1.UTP cat5e 25pair solid cable.25*2*0.5mm
2.24/26AWG outdoor cable
3.COPPER/CCA/CCS/CCAM
4.UTP/FTP/SFTP
5.CE/ROHS/ISO9001/TIA/EIA 568B
6.HDPE insulated
7.LSZH/PVC jacket

SPECIFICATION:
Using environment: indoor
Conductor Diameter: 0.51mm (±0.02 )  24AWG
Insulated Conductor Diameter: 0.93 ± 0.02
Jacket thickness:0.65mm
Jacket Different dimension and outer sheath colours upon request
Minimum bend radius:4 outer cable diameter
Conductor elongation: 14%
Rip cord breaking strength: 92N
Pulling Strength: 92N
Installation temperature:-5~50 (-23 ~ +122)

Operating temperature: -20~75 (-4 ~ +167)


Order Option:



25-pair  UTP

25-pair  FTP

25-pair  STP

25-pair  SFTP

Conductor



24/26 AWG Copper

24/26 AWG Copper

24/26 AWG Copper

24/26 AWG Copper

Shielded

Unshielded

Al Foil shielded



Al Foil shielded+Weave shielded

Insulation

PE

PE

PE

PE

Outer PVC

FR/PVC or LSZH PVC

FR/PVC or LSZH PVC

FR/PVC or LSZH PVC

FR/PVC or LSZH PVC
