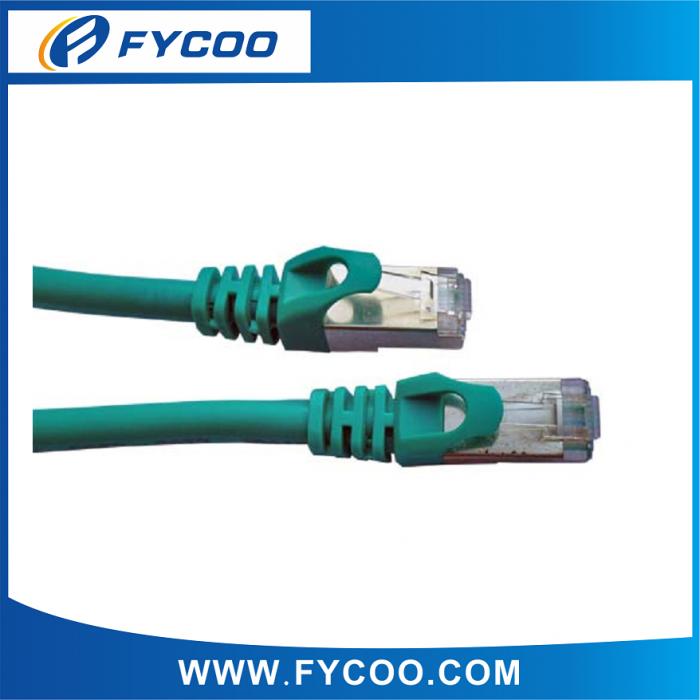

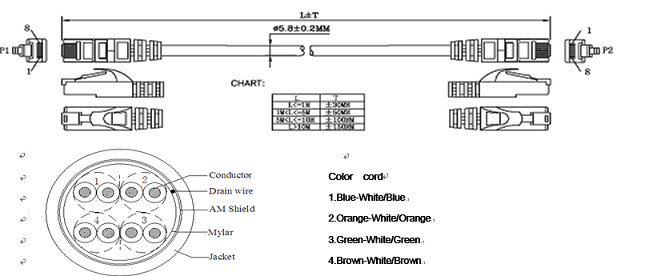

Cat.5e FTP Patch Cord

ITEM

CAT5E FTP 7/0.20 Patch cable

Connector

RJ45 plug x2pcs, FTP, Gold plated for the pins.

No. of Cond.　

4  Pair

Conductor

Material

Bare  Copper  Wire  Stranded

Construction

24AWG; 7 / 0.20 ± 0.008  mm

Insulation

Material

Polyethylene

Thickness

0.19±0.02  mm

Diameter

0.98± 0.05 mm

Inner Layer

Direction

S

Pitch  REF

30mm underneath

Outside Layer

Direction

S

Pitch   REF

100±10mm

Shielding1

Material

Aluminum Mylar  Spirally  Wrapped

Coverage

100%  coverage  with  25%  overlapping

Shielding2

Material

Mylar  Spirally  Wrapped

Coverage

100%  coverage  with  25%  overlapping

Drain wire

Material

Aluminum Magnesium metal

Construction

 1 / 0.40 ± 0.008  mm or 7/0.12± 0.008  mm

Material

PVC

Jacket

Thickness

0.50  mm(Min. Thichness: 0.40mm)

Diameter

5.8±  0.20  mm

Color

optional

Marking

optional

ELECTRICAL  PROPERTIES

Conductor Resistance

Max.  93.8  ohms/km at 20℃

Insulation Resistance

Min.  100  mega  ohms-km at 20℃

Dielectric Test

500V AC /1 min  ; No Breakdown

Impedance

100 ohms ± 15%

Temperature Rating

75℃<
