ITEM

SPECIFICATION

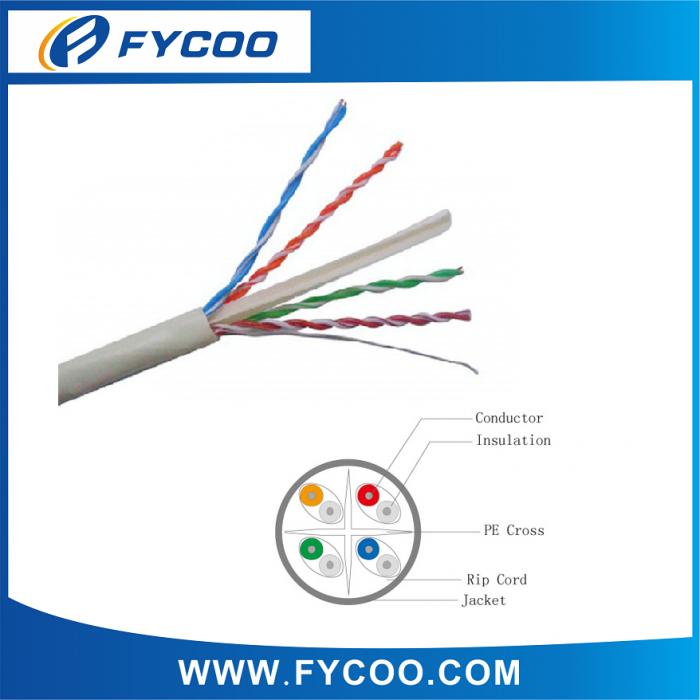

Conductor

material

Bare copper

Construction

23AWG(1/0.57)

O.D.

0.57 mm±0.02mm

Insulation

Material

HD-PE

Thickness

0.269MM±0.05mm

O.D.

1.03MM±0.03mm

Elongation

Min.300%

·         100% new high quality Original Standard Ethernet Cable, CAT 5E(Enhancement)

·         This cable connects all the hardware destinations on a Local Area Network (LAN).

·         Ideal for use with 10 Base-T, 100 Base-T and 1000 Base-T networks. This 100 feet long CAT-5e patch cable has two RJ-45 male to male connectors and features 50-micron gold plated connectors which ensure a clean and clear transmission.

·         Color: optional

·         Gold plated connectors

·         Length:305m/1000ft

·         Compliance Standards: EIA/TIA-568B Category 5E

·         Type: Patch cable

·         Connector(s): 1 x RJ-45 - male

·         Connector(s) (Other Side): 1 x RJ-45 - male

·         works best for your desktop, laptop, router, modem, switch, hub, DSL, xBox, PS2, PS3

tensile

Min.1.22kg/m

Twist Pair

N/A

color

function

1.BlueàWhite / Blue

Unused  Unused

2.OrangeàWhite / Orange

Transmit Data +

Transmit Data -

3.GreenàWhite / Green

Receive Data +

Receive Data -

4. Brown   White / Brown

Unused  Unused

Remark :  Network cabling comprises of four pairs of wires, only two pairs are normally used. Despite this, all the pairs should always be wired to maintain the network specification. The cable pair colors, pair numbers and wire descriptions are shown in the table

jacket

Material

PVC

Thickness

0.615mm±0.1mm

O. D .

6.3mm±0.3mm

Color

According to customer’s requirement

Elongation

Min.125%

tensile

Min.1.41kg/m
