Product Description

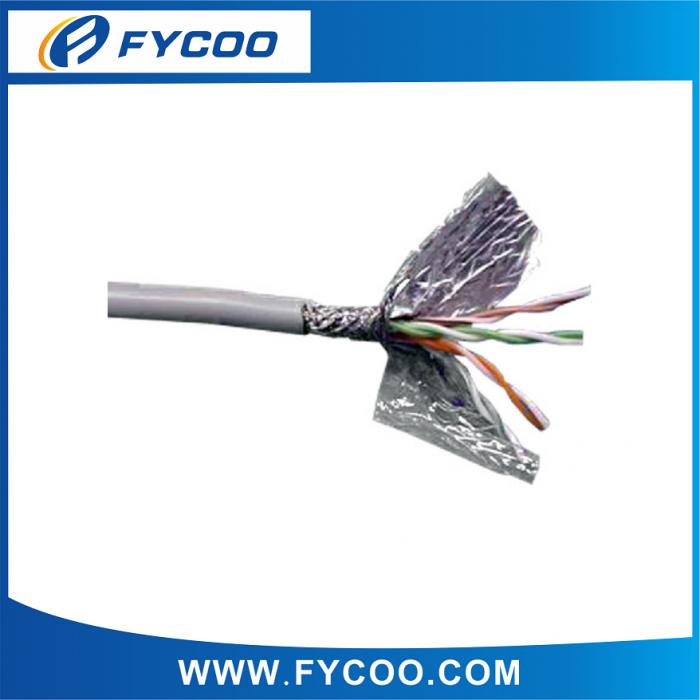

CAT.5e SFTP Network Cable
FEATURE:
CAT.5e SFTP Network Cable,24AWG,4P,Solid Copper
SPECIFICATION:Application Cable:TIA/IEA,
ISO/IEO,568-A, 568-B
Solid Cable: SFTP,Cat5e.4p,Solid Copper
Insulation: Polyolefin,Medium Density Polyethylene
Drain Wire: Tinner Copper
Separator Tape: Synthetic Material
Shield: Aluminum-Mylar Tape
|
Fabric |
Conductor O.D(mm) |
Insulation O.D(mm) |
Pairs |
Screem |
Completed Product O.D(mm) |
Sheath |
|
SFTP |
0.5/0.49 |
1.00 |
4 |
aluminium foil+copper wire braiding |
6.0 |
PVC/LSOH |
Product Performence
|
MHZ |
dB |
dB/ |
NEXT dB |
PSNEXT dB |
ACR dB |
EKFEXT dB |
PSELFEXT dB |
|
0.722 |
19.4 |
1.8 |
74.1 |
64.0 |
65.0 |
66.0 |
63.0 |
|
1.0 |
20.0 |
2.0 |
67.7 |
62.3 |
63.0 |
63.0 |
60.8 |
|
4.0 |
23.0 |
4.1 |
60.2 |
53.34 |
52.0 |
51.7 |
48.7 |
|
8.0 |
24.5 |
5.8 |
59.2 |
48.8 |
46.0 |
45.7 |
42.7 |
|
10.0 |
25.0 |
6.5 |
57.9 |
47.3 |
44.0 |
43.8 |
40.8 |
|
16.0 |
25.0 |
8.2 |
55.5 |
44.3 |
39.0 |
39.7 |
36.7 |
|
20.0 |
25.0 |
9.3 |
53.5 |
42.8 |
37.0 |
37.7 |
34.7 |
|
25.0 |
24.3 |
10.4 |
51.8 |
41.3 |
34.0 |
35.8 |
32.8 |
|
31.25 |
23.6 |
11.7 |
46.7 |
39.9 |
31.0 |
33.9 |
30.9 |
|
62.5 |
21.5 |
17.0 |
44.7 |
35.4 |
21.0 |
27.8 |
24.8 |
|
100 |
21.0 |
22.0 |
38.1 |
32.3 |
13.0 |
23.8 |
20.8 |
