Product Description

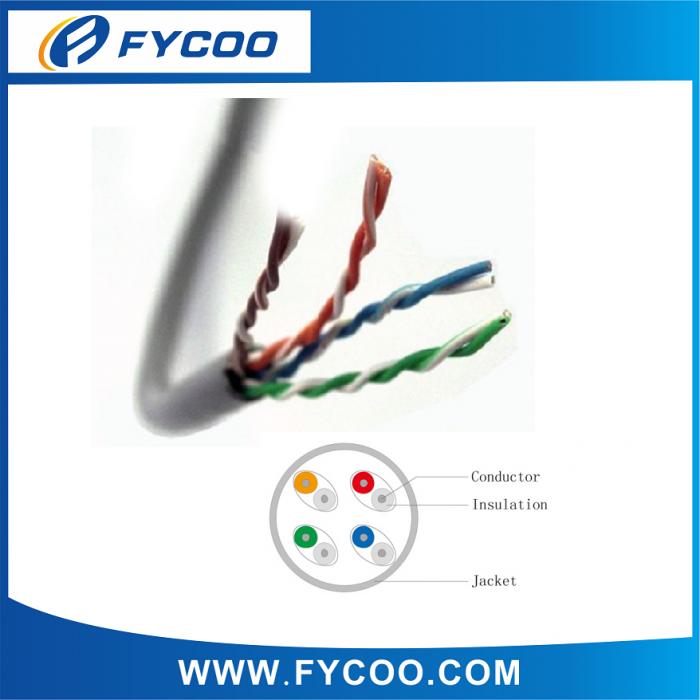

Cat.5e UTP Network Cable
Feature:
Solid conductor
SPECIFICATION:
1. This kind of cable use bare copper to be the center conduction with thespecification is 24AWG and PE to be the dielectric. The jacket is made of
fireproof material, which is so meanful to the Cat.5e communication.
2. This Cat.5e UTP cable is conform to the SIO/IEC, TIA/EIA and EN standards and the
electrical characteristics are exceed the lastest Cat.5e standards.
3. LSZH: means “Low smoke zero halogen”, which is the symbol of environmental
protection.
ELECTRICAL CHARACTERISTICS:
1.
Impedance: 100±15
2. Static electric capacity: max:17.1nf/kf
3. Resisitance: max:28.6/kf
4. Unbalance resisitance: max 5%
5. Unbalance capacity: max 330pF/
6. Roted communicate rate: 65%
PHYSICAL CHARACTERISTICS:
1. Copper
diameter: 24AWG
2. Outer diameter:
3. Minimum bend radius: O.D.*4-6
4. Maximum pulling tension: 10.0
5. Jacket material: PVC/LSZH
6. Roted temperature: -20~
APPLICATION:
1.
10/100/1000Mbps Ethernet
2. 100VG-AnyLAN
3. Token ring
4. ATM155/ATM622 etc
STANDARD:
1.
ISO/IEC-11801
2. EN-50173
3. TIA/EIA-568B
Shape |
Conductor |
Insulation |
Core
Number |
Jacket |
||||
AWG |
Specification (mm) |
Material |
Thickness (NOM.mm) |
Material |
Thickness (NOM.mm) |
OD
(NOM.mm) |
||
Circular
Cable |
26 |
1/0.404 |
HD-PE |
0.18 |
4P |
PVC or
LSNH |
0.55 |
4.8 |
7/0.16 |
HD-PE |
0.18 |
4P |
PVC or
LSNH |
0.55 |
5.0 |
||
24 |
1/0.511 |
HD-PE |
0.18 |
4P |
PVC or
LSNH |
0.55 |
5.4 |
|
7/0.203 |
HD-PE |
0.18 |
4P |
PVC or
LSNH |
0.55 |
5.5 |
||
Flat Cable (Non-sign) |
30 |
7/0.10 |
HD-PE |
0.13 |
4P |
PVC |
0.30 |
1.75*6.2 |
28 |
7/0.127 |
HD-PE |
0.13 |
4P |
PVC |
0.30 |
1.90*7.0 |
|
24 |
7/0.203 |
HD-PE |
0.18 |
4P |
PVC |
0.50 |
3.0*9.0 |
