Product Description

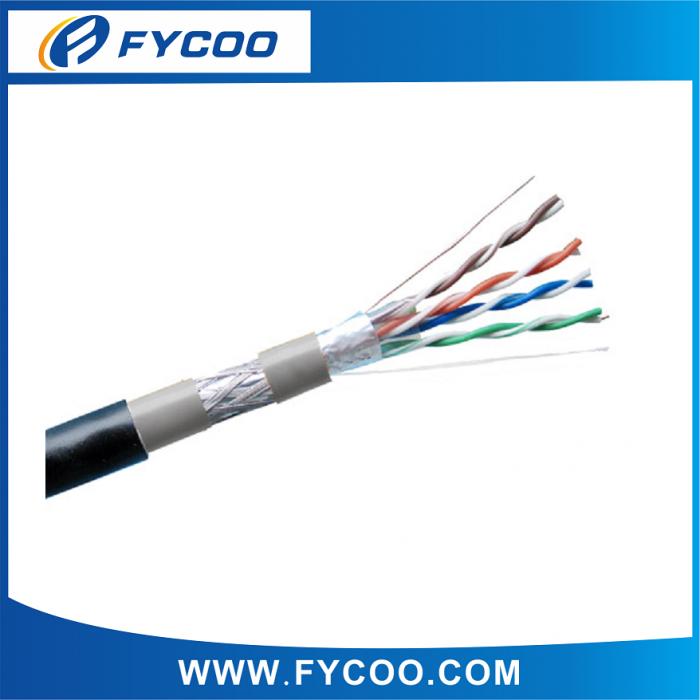

Cat.5e Outdoor SFTP Network Cable
SPECIFICATION:
Rated
Temperature:
Wire Color Code:
Pair1:white/blue&blue Pair2:white/orange&orange
Pair3:white/green&green Pair4:white/brown&brown
Conductor:
26AWG or 24AWG Stranding ,Solid Bare copper
Insulation:
HDPE
Drain
Wire: 26AWG or 24AWG Stranding , Solid copper
Outer
Shielded: AL-Mylar 100 %(min) coverage
Jacket:
PVC ,LSZH
Inner
Jacket: HDPE
Impedance: 100±15% Ω at 1 ~100MHz
STANDARD:
YD/T1019-2001,ANSI/TIA/EIA-568B,ISO/IEC11801
