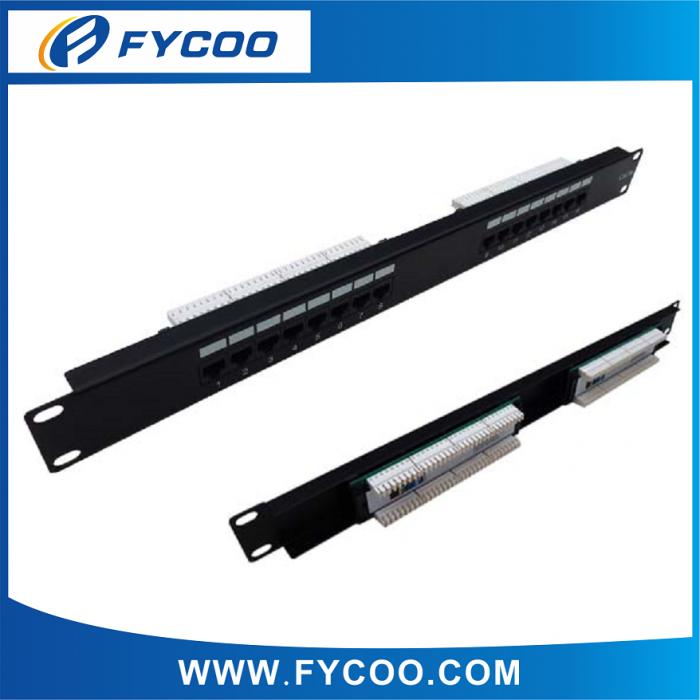

Name:	Cat.5e 16 Ports UTP Patch Panel（110 & Krone End） 2 Equal Part
Model NO.	FCPP5U16004

Cat.5e 16 Ports UTP Patch Panel（110 & Krone End） 2 Equal Part

FEATURE:

16port patch panel .

2.19" cabinet designed

3.CE ROHS Compliant

4.Free OEM design

5.Cat5e UTP- Unshielded, RJ45 24 port, 19-inch rack mount 1U with 45 degree angle Cat.5e

6.Designed for transmission 1,000Mbps Ethernet networking application

7.Supports transmission 10Gbps for 55m length

8.Relieves patch cord bending radius

9.Can be installed wire by LSA insertion tool conveniently and stably

10.Outer structure dimension meets ESTI 19-inch standard

11.Color: black

SPECIFICATIONS:

ELECTRICAL：

1.VOLTASE RATING: 125 VAC RMS

2. CURRENT RATING: 1.5 AMP

3. CONTACT RESISTANCE:100 MILLIOHMS MAX

4. INSULATION RESISTANCE :1000 MEGOHMS MIN @ 500 VDC

5. DIELECTRIC STRENGTH:750 VAC RMS 60Hz,1MIN

ENVIRONMENTAL:

1.STORAGE:-40°TO +85°

2.OPERATION:0° TO 70°

CONFORM TO TIA/EIA 568B CATEGORY 5e

MATES WITH MODULAR PLUG CONFORMING TO FCC PART 68,SUBPART F.

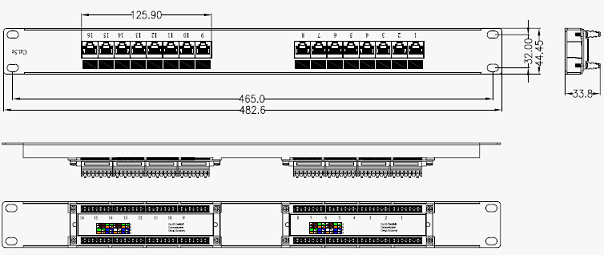

MECHANICAL:

1. HOUSING MATERIAL :PBT+15%GF UL94V-0

2.PANEL FRAME:CARBON STEEL,POWDER COATING IN BLACK COLOR

3. CONTACT MATERIAL:PC UL94V-0 CONTACT:PHOSPHOR BRONZE WITH NICKEL PLATING

4. RJ45 JACK LIFE :750 TIMES MIN

5.IDC LIFE:200 TIMES MIN

6.WIRE:AWG 24~26
