Product Description

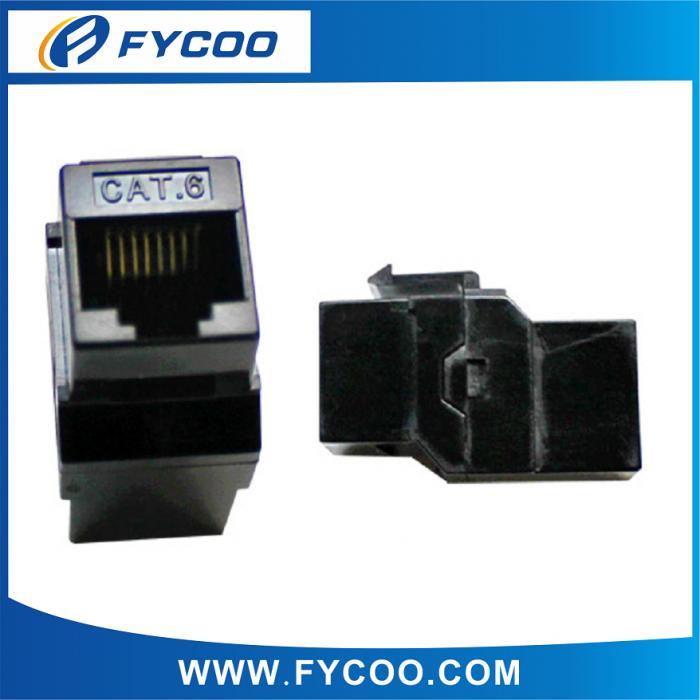

Cat.6 UTP in-line Coupler, RJ45 Female to female, with latch hook
8P8C RJ45 Cat5e Cat6 Straight-through coupler with latch hook
Specification:.
1. RJ45 jack contact,phosphor bronze,nickel-plate with 50 micro-inch gold-plating.
2. Housing:ABS +PC,UL94V-0
3. Insertion force:900g for eight contacts.
4. Retention strength:7.7kg between jack and plug
5. Operation temperature:-40 to 80 degree celsuis
6. Durability:jack 750 cycles plug-jack mating and unmating test,insertion cycles at 20 cycles/minute maximum.
7. Contact resistance test per 100 cycles.
8. IDC:maximum 200 punching times.
9. Category 6 performance is in compliance with the ANSI/TIA/EIA 568 B.2-1 standard.
10.VSPD:UTP connectors.
