Name:	UTP Cat.6 Keystone Jack 90 degree, tooless, folding type Technical standard
Model NO.	FCKJ6U036

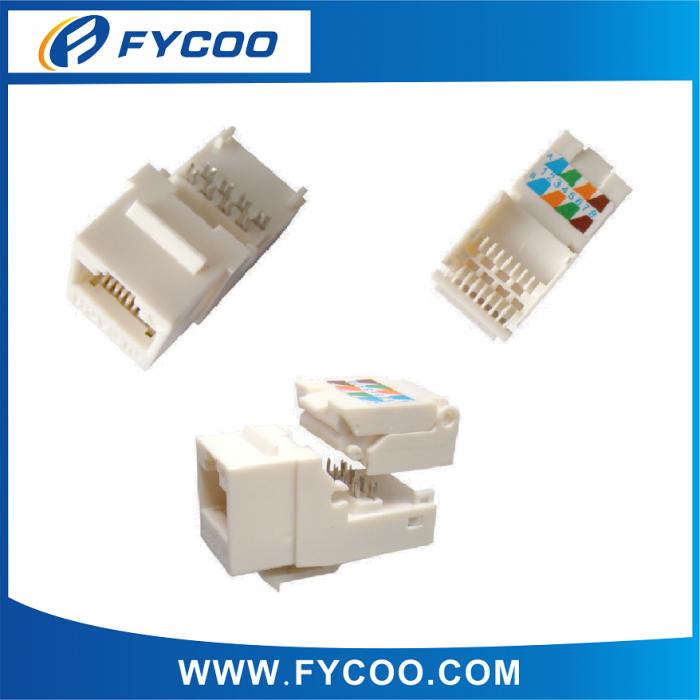

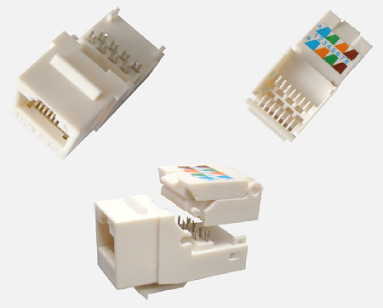

UTP Cat.6 Keystone Jack 90 degree, tooless, folding type Technical standard

Main Describe of The Product: 1.

Unshielded Keystone jack. Tooless type. The products are used in the Equipment

Rooms & Work area as communication connectors of the intelligent Buildings.

2.According with ISO/IEC 11801:2002 Class E & ANSI/TIA/EIA/568-B.2-1 CAT.6

standard.

3.According with T568A & T568B. The T568A & T568B labels are adhibited on the both

sides of the product to give a exact guide when a engineer punches the cables.

4.Connecting: RJ45 port for UTP patch cord and the IDC port for STP horizontal cabling.

5.According with ROHS requirement.

6.Fit for Cat.6 Cabling systems, can also be used on Cat.5 and Cat.5e cabling systems.

Technique Characteristics:

1.The plastic parts' material: PC UL94V-0

2.8 Pin of the RJ45 jack: Phosphor bronze with 50U golden cladding. Insertion

Dependability: 750 times.

3.IDC Clips: Tinned phosphor bronze pins. Fit for 22AWG/23AWG/24AWG Cables.

Punching Dependability: 250 times.

4.Punching Tools: Tooless Type.

5.Testing condition of transmitting capability : 250MHz
