Product Description

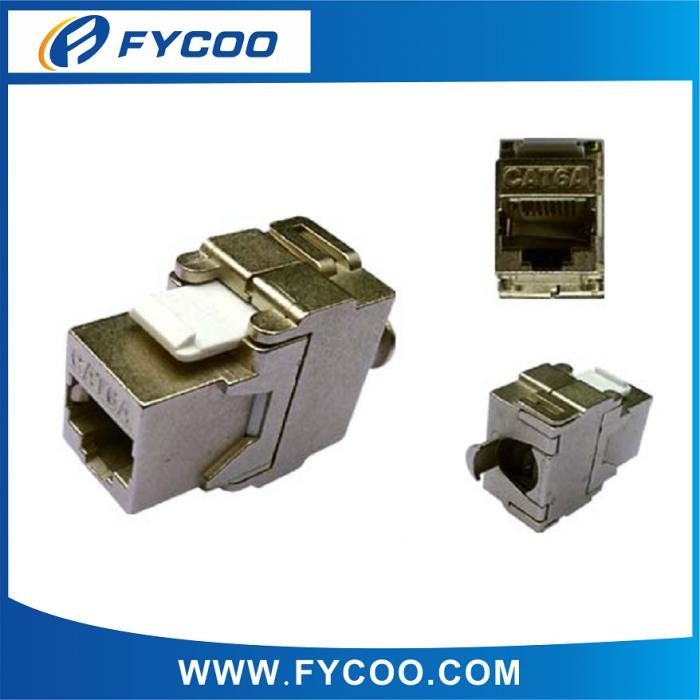

Cat6 Keystone Jack:
1.Available in Cat6 T568 A T568 B wiring.
2.Easy to be terminated
3.Low attenuation loss
Products Description
The shielded version is available to maximum protection from EMI/RFI interference by utilizing fully shielded jacks and connecting hardware, you can reduce the effects of interference on the network data transmissions . The compact size provides high-density connectivity in the work area and telecommunications room .
Features and benefits :
1.Available in Cat6, T568A/B wiring schemes, meet or exceed TIA/EIA Cat6 requirements .
2.Shielding protects against EMI/RFI interference
3.Housing: high temperature thermoplastic
4.Compact jack design, 8 positions and 8 conductors
5.Contact: phosphor bronze, phosphor bronze with 6 to 50μ gold plate
6.Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6 mm
7.Easy to be terminated,extremely low attenuation loss and high return loss
8.High reliability and superior performance
