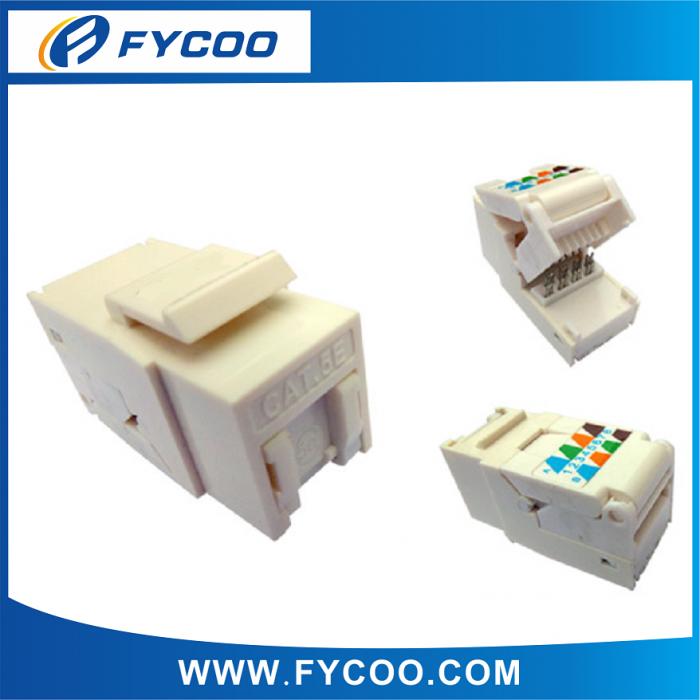

Name:	CAT5E Folding type Tooless Keystone Jack
Model NO.	FCKJ5U018

ELECTRICAL:

1.VOLTAGE RATING : 125 VAC RMS

2.CURRENT RATING : 1.5 AMP

3.CONTACT RESISTANCE : 100 MILLIOHMS MAX

4.INSULATION RESISTANCE : 1000 MEGOHMS MIN @ 500 VDC

5.DIELECTRIC STRENGTH : 750 VAC RMS 60Hz,1MIN

ENVIRONMENTAL:

1.STORAGE :-40

2.OPERATION :0 TO 70

MATES WITH MODULAR PLUG CONFORMING TO FCC PART 68

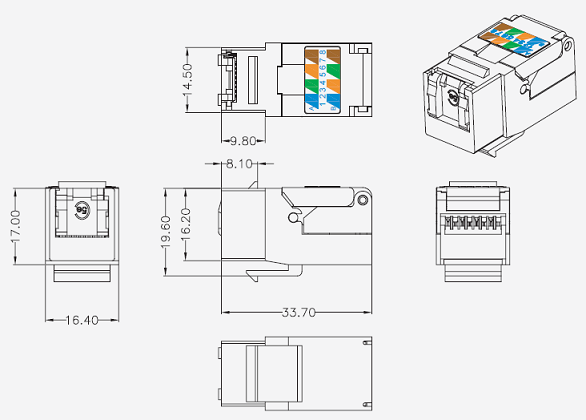

MECHANICAL:

1. HOUSING MATERIAL : PC UL94V-0

2. INSERT MATERIAL : FLAME RETARDANCY ABS UL94V-0

3. PCB MATERIAL : FR-4 THICKNESS:1.6mm

4. CONTACT MATERIAL : PHOSPHOR BRONZE STAMP PIN T=0.35mm

5. IDC CONTACT MATERIAL : PHOSPHOR BRONZE T=0.50mm WITH TIN PLATING

6. WIRE : AWG 24~26
