Location:Index--->Product Center >> Networking Jack & Plug >> CAT.5e 90° Tooless Keystone Jack

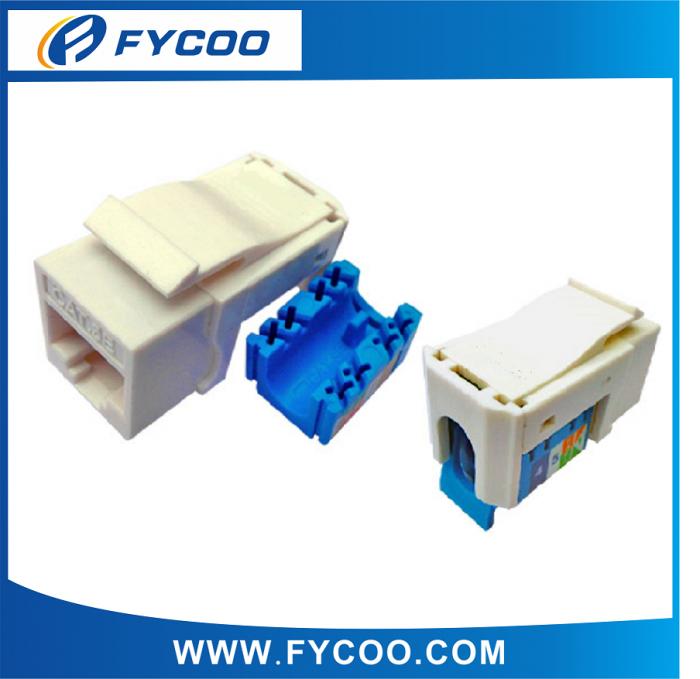

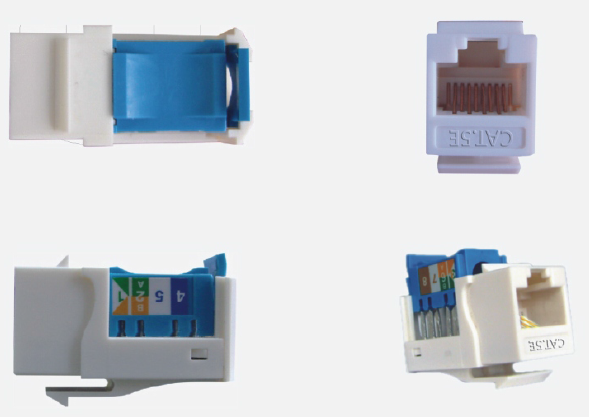

Name:	CAT.5e 90° Tooless Keystone Jack
Model NO.	FCKJ5U017

Product Description

Main Describe of The Product:

1.90。Tooless Unshielded KJ. The products are used in the Equipment Rooms & Work area as communication connectors of the intelligent Buildings.

2.The structure of the Keystone Jack is compact and tooless. This design is based on contemporaneity aesthetics. The original dust free tooless punching hats can make your work more easy and fast, and it can also prevent the cable from slipping of from the IDC ports.

3.According to the standard of ISO/IEC 11801:2002 Class E & ANSl/TIA/EIA/ 568-8.2-1 CAT.6 standard.

4.According to the regnirement of T568A & T5688. The T568A & T5688 labels are sticked on the both sides of the product to give a exact guide when a engineer punches the cables.

5.Connecting: RJ45 port for UTP patch cord and the IDC port for UTP horizontal cabling.

6.ln accordance with RoHS Derective.

7.Fitting for Cat.6 Cabling systems ，can also be used on Cat.5 and Cat.5e cabling system

Technique Characteristics :

1.Housing and other plastic parts' material: PC UL94V-O

2.8 Pin of the RJ45 jack: Phosphor bronze with golden plated 3U、6U、15U、30U、 5OU at option . Inserting Duration: 750 times.

3.IDC Clips: Tinned phosphor bronze pins. Fitting for 22AWG/23AWG/24AWG Cables. Punching Duration:250 times.

4.Punching Tool:Tooless type.

5.Testing condition of transmitting cpability: 250MHz
