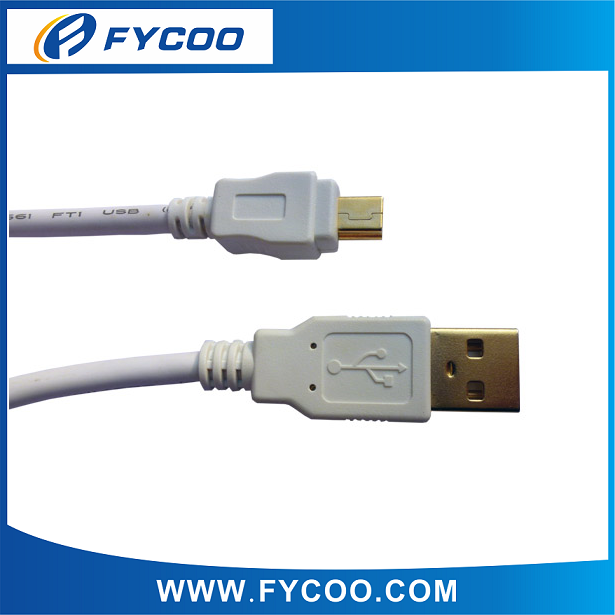

USB A Male to USB MINI 5pin male Cable

PVC molding

USB 2.0 cable

Model：FCEBAN206

Specifications:

USB 2.0 cable

USB "A" MALE TO MINI USB 5PIN MALE

Connector : Nickel or Gold  plated

Conductor: Copper

Color: White

PVC molding

Cable specification :

UL2725 24AWG*2C+28AWG*1P+AL+1+B(16*2/0.10TCCA)   OD:4.5 COLOR:WHITE

USB "A" MALE TO MINI USB 5PIN MALE GOLD CONNECTOR

Electrical:

100% open & short test

HI-pot: DC 300v 10ms

Insulation Resistance:10MΩ /300V MIN

Contactivity: Resistance: 0.01Ω MAX

Working temperature: -25oC to +85oC

                  l

Package:

Polybag , PE bag ,blister
