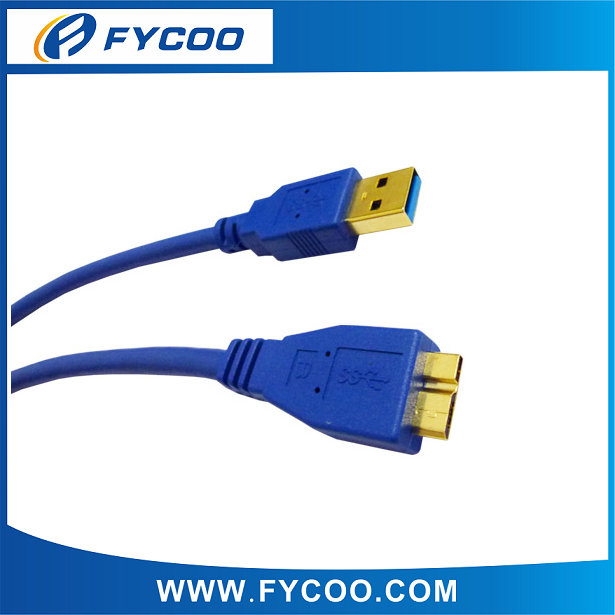

Name:Super Speed USB 3.0 AM TO Micro B Cable
Model NO.:FCEBAC306

Product Description

Super Speed USB 3.0 AM TO Micro B Cable





ModelFCEBAC306



Specifications:

USB 3.0 Cable

USB 3.0 AM TO Micro B Cable

Connector : Nickel or Gold  plated

Conductor: Copper

Cable Color: Blue

Blue PVC molding



Cable specification :

Cable USB3.0 AM TO Micro B, VERSION 3,0                                       UL2725(28#*1P+D+AL+MYLAR)*2+28#*1P+24#*2C+AB,OD5.5mm, Blue color



Electrical:

100% open & short test

HI-pot: DC 300v 10ms

Insulation Resistance:10MΩ /300V MIN

Contactivity: Resistance: 0.01Ω MAX

Working temperature: -25oC to +85oC





USB3.0 vs USB2.0 Feature

Features

USB3.0

USB2.0

Data Rate

SuperSpeed (5.0Gbps) additional

low-Speed (1.5Mbps)
full-Speed (12Mbps)
high-Speed (480Mbps)

Data Signal

SS OUT Differential Signal: 1 Pair
SS IN Differential Signal: 1 Pair additional

Differential Signal: 1 Pair

Connector Signals

4 wires: SuperSpeed
2 wires: DP/DM for USB 2.0
3 wires: Vbus/GNDx2

2 wires: DP/DM for USB 2.0
2 wires: Vbus/GND

Bus Protocol

No polling

Uses polling

Power Control

Configuration at multiple link levels

Suspend/Resume by Port

Power Supply to Bus

Max. 900 mA

Max. 500 mA

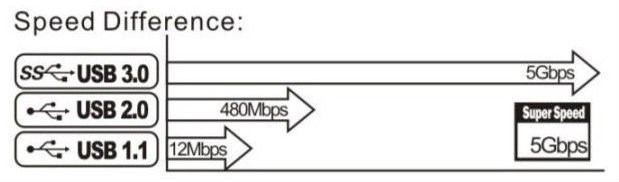

USB 3.0 vs USB 2.0 Speed

USB 3.0:  5GPS

USB 2.0:  480Mbps

USB 1.1:  12Mbps



Package:

Polybag , PE bag ,blister
