Product Description

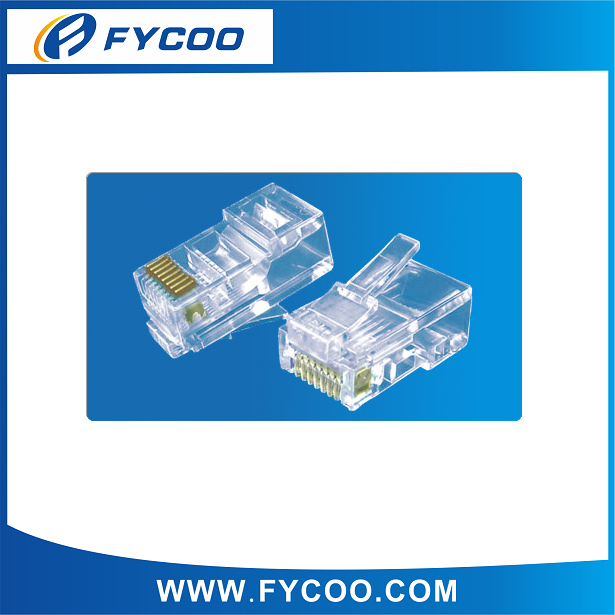

Cat.5e UTP 8P8C RJ45 Modular Plug , 1 piece
SPECIFICATION:
Electrical |
1. Insulation Resistance: |
500M Ohm Min |
2. Dielectric Strength: |
1000V AC(50-60Hz) 0.5mA 1min |
|
3 .Contact Resistance: |
20m ohm Max |
|
Mechanical |
1. Retention Strength: |
Between plug and jack 7.79kg Min |
2 .Mating and un-mating force: |
2.27kg Max |
|
3 .Durability: |
750 mating cycles Min. |
|
Material |
1 . Housing: |
Polycarbonate (PC) UL 94V-0 or UL 94V-2 |
2 .Contacts: |
Phosphor bronze, Nickel plating followed with gold plating: 3u, 6u, 15u, 30u, or 50u micro-inch selectable |
|
3. Shield |
Copper alloy with nickel plated |
|
Ratings |
1.Current Rating: |
1.5 AMP |
2. Voltage Rating: |
1.25 VAC |
|
3. Operation Temperature : |
||
4. Preservation Range: - |
-20°C~50°C RH<80% |
PACKING:
SPEC. Q'TY PCS/CTN N.W. KGS G.W. KGS Dimension(cm) 6P2C 20,000 15.96 17.50 49.6*36.2*26.5 6P4C 20,000 15.86 17.40 49.6*36.2*26.5 6P6C 20,000 16.13 18.03 49.6*36.2*26.5 4P4C 25,000 16.59 18.23 49.6*36.2*26.5 8P8C 10,000 15.26 17.00 49.6*36.2*26.5 10P10C 10,000 18.00 19.00 49.6*36.2*26.5 8P Shielded 10,000 25.40 27.50 51.6*36.2*32.0 Cat.6 UTP 10,000 13.70 15.80 51.6*36.2*32.0 Cat.6 Shielded 10,000 23.72 25.82 51.6*36.2*32.0

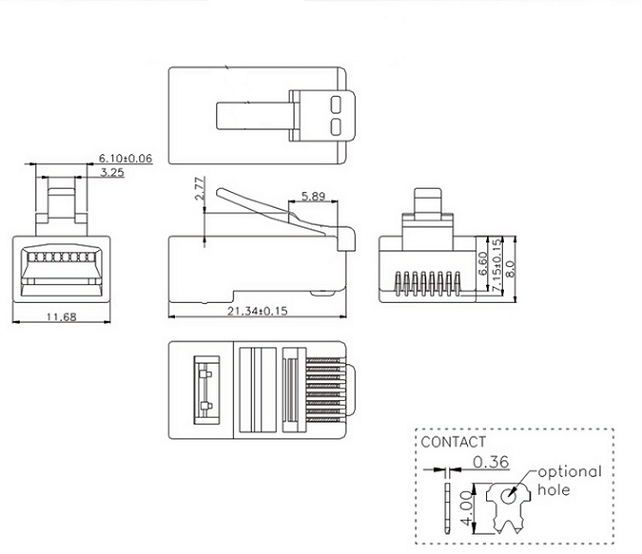

DRAWING:
