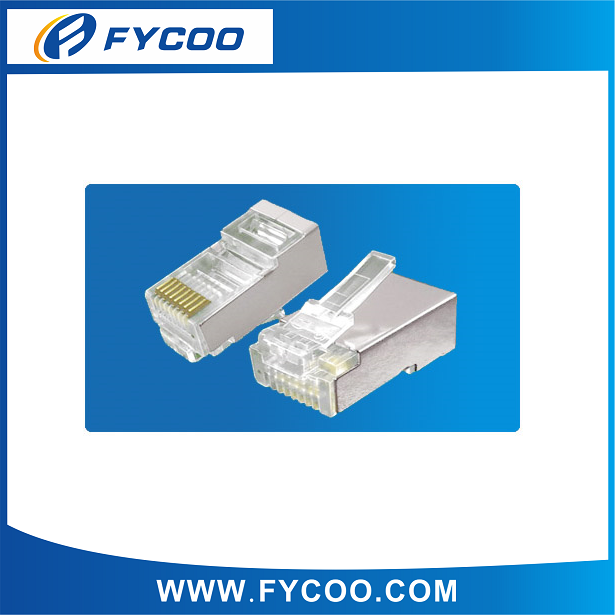

Name:Cat.5e FTP 8P8C RJ45 Modular Plug , 1 piece
Model NO.FCNP58F006

Product Description

Cat.5e FTP 8P8C RJ45 Modular Plug , 1 piece

FEATURE:

Cat.5e FTP 8P8C RJ45 Modular Plug  1PIECE

1. Product Name: RJ45 connector for Cat5e FTP
2. Suitable for cable: round, stranded cable 26AWG;
3. Contact blade: Copper Alloy with gold plating, the standard gold thickness ,FU,3U, 06u, 15u, 30u, 50u could be optional.
4. Blade Type: 2 prongs or 3 prongs optional.
5. Color: Transparent, Transparent color blue, red etc., or not transparent blue, red etc., 3 options
6. Mechanical: Fully comply with FCC standard.

SPECIFICATION:

Electrical

1.  Insulation Resistance:

500M Ohm Min

2. Dielectric Strength:

1000V AC(50-60Hz) 0.5mA 1min

3 .Contact Resistance:

20m ohm Max

Mechanical

1. Retention Strength:

Between plug and jack  7.79kg Min

2 .Mating and un-mating force:

2.27kg Max

3 .Durability:

750 mating cycles Min.

Material

1 . Housing:

Polycarbonate (PC) UL 94V-0 or UL 94V-2

2 .Contacts:

Phosphor bronze, Nickel plating followed with gold plating: 3u, 6u, 15u, 30u, or 50u micro-inch selectable

 3. Shield

Copper alloy with nickel plated

Ratings

1.Current Rating:

1.5  AMP

2. Voltage Rating:

1.25 VAC

3. Operation Temperature :

-40°C~80°C

4. Preservation Range: -

-20°C~50°C        RH<80%


PACKING:

SPEC.

Q'TY PCS/CTN

N.W. KGS

G.W. KGS

Dimension(cm)

6P2C

20,000

15.96

17.50

49.6*36.2*26.5

6P4C

20,000

15.86

17.40

49.6*36.2*26.5

6P6C

20,000

16.13

18.03

49.6*36.2*26.5

4P4C

25,000

16.59

18.23

49.6*36.2*26.5

8P8C

10,000

15.26

17.00

49.6*36.2*26.5

10P10C

10,000

18.00

19.00

49.6*36.2*26.5

8P Shielded

10,000

25.40

27.50

51.6*36.2*32.0

Cat.6 UTP

10,000

13.70

15.80

51.6*36.2*32.0

Cat.6 Shielded

10,000

23.72

25.82

51.6*36.2*32.0

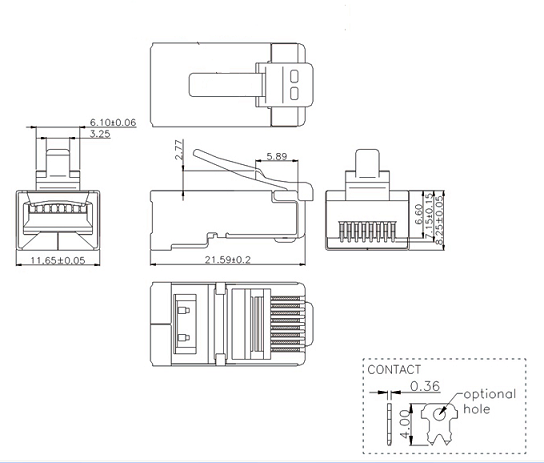

DRAWING:
