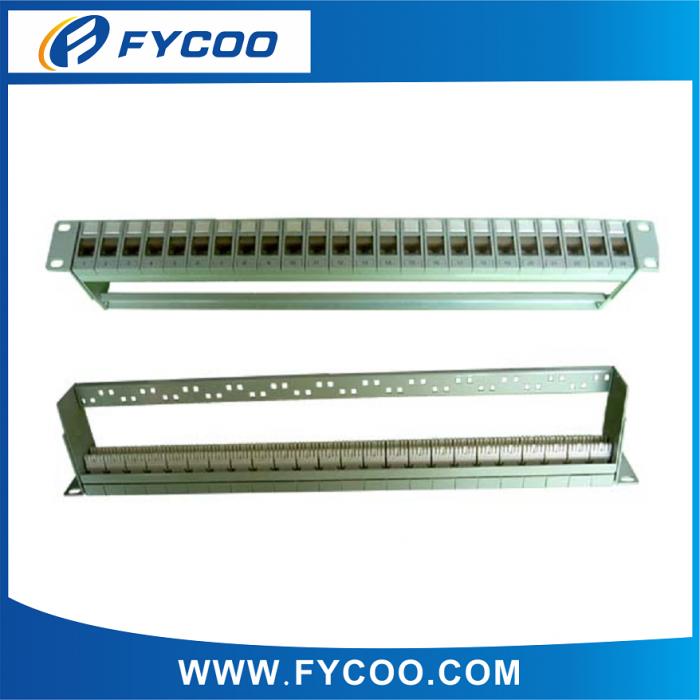

- 24-ports
patch panel
- Type: CAT6A
UTP
- Each port
has the same structure to ensure the consistency of performance
- Standards:
IEC 11801:2000 Class D and ANSI/TIA/EIA/568B, CAT5e
- T568A and
T568B punching sequence are both compatible
- Fits for
horizontal distribution in equipment rooms and equipment connection
- Connectivity:
FCC port for CAT5e UTP patch cord and IDC for horizontal distribution
cables
- Compatibility:
compatible for CAT5e UTP general cable distribution systems
- IDC: 110
or dual use types
- The entire
outer frame is made of high carbon steel with plastic powder scalding
- RJ-45
jack frames: PBT, gold-plated phosphor bronze pins
- Shielded
shell of RJ-45 jack: brass housing with nickel plating
- IDC clip:
tinned phosphor bronze pins
- Fit for
22/23/24AWG cables
- Punching
duration: 250 times
- FCC ports
inserting duration: 750 times
- Cabling
sequence: T568A&B
- Punching
tools:
- Standard
110 tool for 110 IDC
- Standard
110/LSA tool for dual IDC
- Testing
condition of transmitting capability: 100MHz
|
|
