Name:	Cat5e UTP 48 Ports Patch Panel（Double USE End）
Model NO.	FCPP5U48015

Product Description

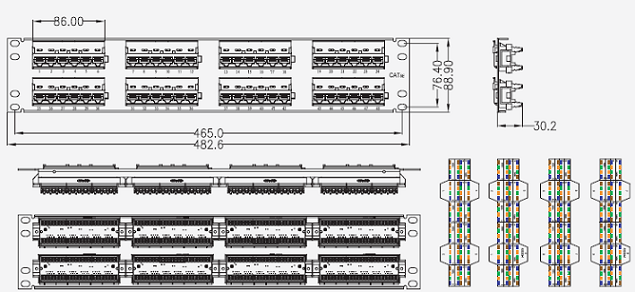

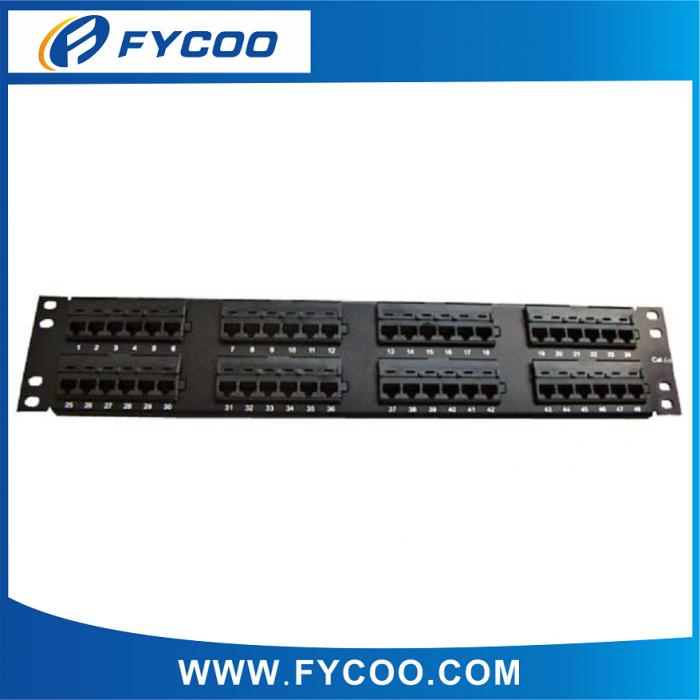

Cat5e UTP 48 Ports Patch Panel（Double USE End）

FEATURE:

1.Designed for use with Cat5e UTP Patch Cables

2.12/16/24/32/48 Ports available

3.Meet ANS/TIA/EIA 568B.2.ISO/IEC 11801&EN501734.IDC contract material: phosphor bronze with tin plating over nickel

4.IDC: PC UL94v-0,white color.110/krone/110 & krone Dual Use IDC available

5. With support hole for cable ties9. Metal sheet: Corrosion resistant streets.

6. 19”metal plate housing, black color painting

7. Entire high-carbon steel outer frame, with plastic powder cladding.

8. RJ45 jack frame material: PBT, golden plated phosphor bronze pins; Shielding shell of the RJ45 jack: Brass housing with nickel-plated. IDC clip: Tinned phosphor bronze pins.

9. Fitting for 22AWG/23AWG/24AWG cables, punching duration: 250 times. FCC ports inserting duration: 750 times.

10. Cabling sequence: T568A & B.

11. Punching tools: standard LSA tool.

12. Testing condition of transmitting capability: 100MHz.

SPECIFICATIONS:

ELECTRICAL：

1.VOLTASE RATING: 125 VAC RMS

2. CURRENT RATING: 1.5 AMP

3. CONTACT RESISTANCE:100 MILLIOHMS MAX

4. INSULATION RESISTANCE :1000 MEGOHMS MIN @ 500 VDC

5. DIELECTRIC STRENGTH:750 VAC RMS 60Hz,1MIN

ENVIRONMENTAL:

1.STORAGE:-40°TO +85°

2.OPERATION:0° TO 70°

CONFORM TO TIA/EIA 568B CATEGORY 5e

MATES WITH MODULAR PLUG CONFORMING TO FCC PART 68,SUBPART F.

MECHANICAL:

1. HOUSING MATERIAL :PBT+15%GF UL94V-0

2.PANEL FRAME:CARBON STEEL,POWDER COATING IN BLACK COLOR

3. CONTACT MATERIAL:PC UL94V-0 CONTACT:PHOSPHOR BRONZE WITH NICKEL PLATING

4. RJ45 JACK LIFE :750 TIMES MIN

5.IDC LIFE:200 TIMES MIN

6.WIRE:AWG 24~26

CATEGORY 5e CHARACTERISTIC
Frequence	Near-End Cross Talk DB, MIN.	Return LosS DB, MIN.	Attenuation DB,MAX.
1.0 MHZ	65	35.5	0.1

4.0 MHZ	65	35.5	0.1

8.0 MHZ	64.9	35.5	0.1

10.0 MHZ	63	35.5	0.1

16.0 MHZ	58.9	35.5	0.2

20.0 MHZ	57	34	0.2

25.0 MHZ	55	32	0.2

31.25 MHZ	53.1	30.1	0.2

62.5 MHZ	47.1	24	0.3
