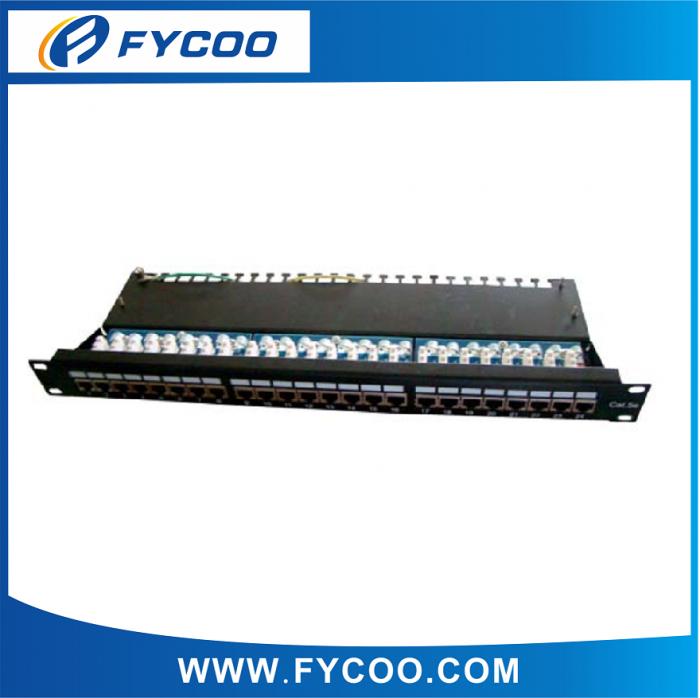

Cat.5e FTP 24 Ports Patch Panel （krone End）

ELECTRICAL:

1. VOLTAGE RATING: 125 VAC RMS

2. CURRENT RATING: 1.5  AMP

3. CONTACT RESISTANCE: 100  MILLIOHMS MAX

4. INSULATION RESISTANCE:  1000 MEGOHMS MIN @ 500 VDC

5. DIELECTRIC STRENGTH: 750 VAC RMS 60Hz, 1MIN

ENVIRONMENTAL:

1. STORAGE: -40 TO +85

2. OPERATION: 0 TO 70

CONFORM TO TIA/EIA 568A CATEGORY 5e MATES WITH MODULAR PLUG CONFORMING TO FCC PART 68 SUBPART F.

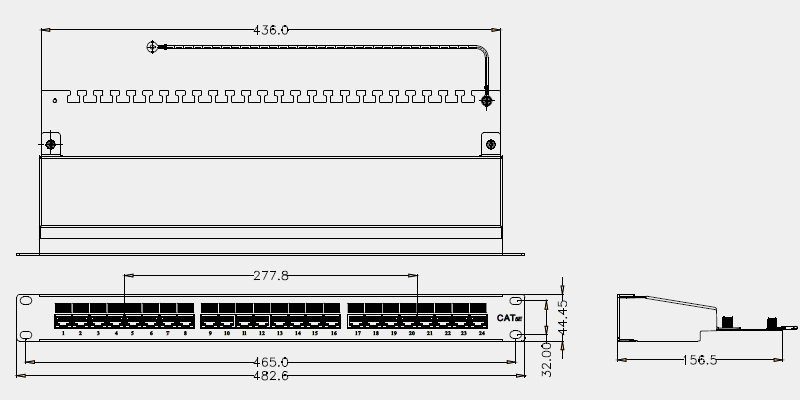

MECHANICAL:

1. HOUSING MATERIAL: PBT+15%GF UL 94V-0

2. PANEL FRAME: CARBON STEEL, POWDER COATING IN BLACK COLOR

3. IDC MATERIAL: PC UL 94V-0, CONTACT: PHOSPHOR BRONZE WITH NICK PATING
