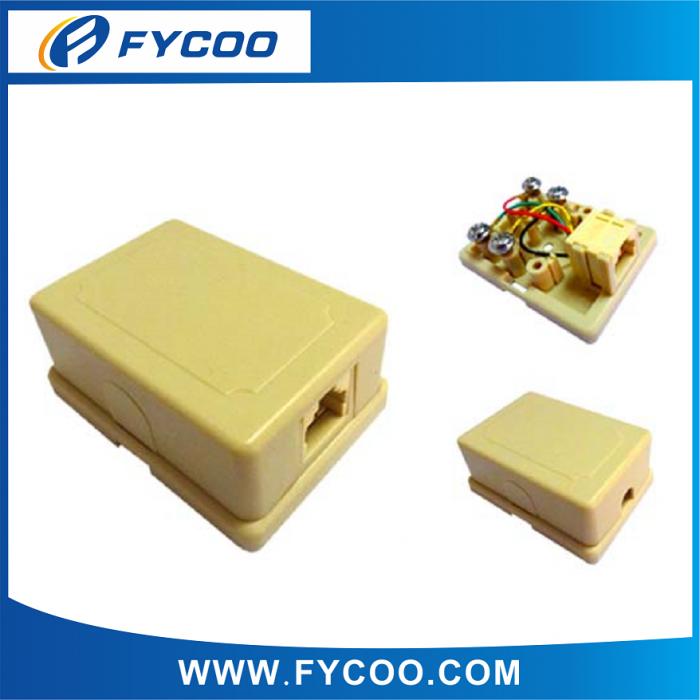

Telephone surface mounted box  1 port

Surface Mounting Telephone Box

A. Single port RJ11/6P2C jack.
B. With gel including contact and conductor.
C. Waterproof, Tooless type

SPECIFICATIONS:

Gel filled inside
Dimension: 55× 50× 22mm

Mechanical Performance:
Socket Material: PC( UL94V-0)
Box Material: ABS
Oxygen Number: 30%
Chemical Resistance Corrosion: Corrosion Test is in compliance with IEC-60068-2-11 standard, contact resistance, following completion of the test, not increase for more than1 Milliohm with regard to the initial contact resistance quantity.
Finishing: 6u", 15u", 30u", 50u"
Contact Pressure
(plug termination side): 4.5-5.5N/sp. M
Treatment Porosity: Fill with gel
Male Plug Introduction: RJ11 6P2C
Shocks Resistance: 55-64N/sp. M
Free Drop Test: 1.5m Height.
Insertion Force: 20-50N.

Electrical Performance:

Environment Characteristic:
Storage Temperature Range: -40+90º C
Operating Temperature Range: -30+80º C
Relative Humidity: <95%(at20)
Atmospheric: Pressure: 70KPa106KPa
