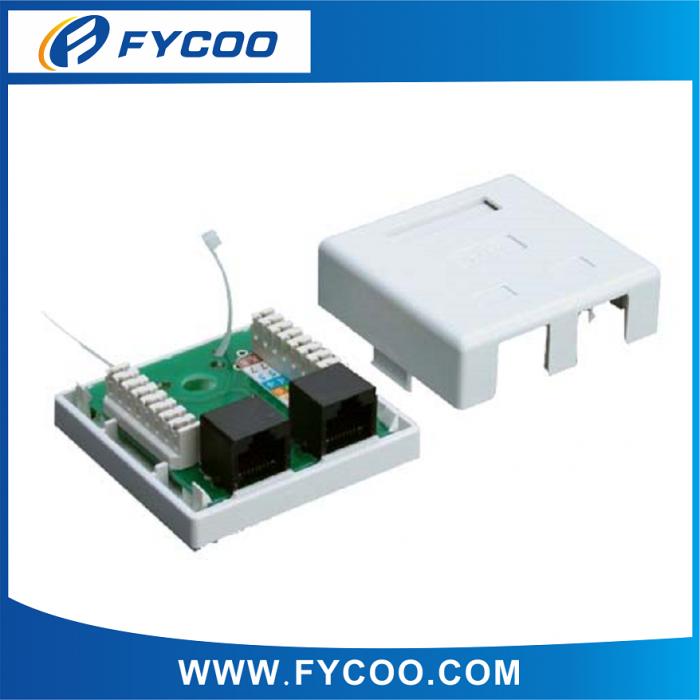

Name:Cat.5e UTP Surface Mounted Box with PCB 2 ports
Model NO.FCSM5U02004

Product Description

Cat.5e UTP Surface Mounted Box with PCB 2 ports

CAT.5E RJ45 unshielded  surface mount box with PCB single port

Flush Mounted Plate


SPECIFICATIONS:

1. Suitable for various modules and multimedia interfaces,Radian appearance make it more slinky,Embedded chart and logo position make it easy to identity,With position of inserted graph and label for convenient distinction.
2. Size (mm): L x W x H
3. The performance of anti-burn: anti-burn PC plastic parts
4. Material: PC,Combustibility achieved GB/T 5169.7-1985 standard
5. Standard: according to the international standard ISO/IEC11801; TIA/EIA568
6. Specification: 1-port,
7. For installing modular jacks such as RJ45, Cat5e, Cat6e, coaxial cable

8.Various information modules provide multiple choices for wiring system.

9.The design of modules exceed the standard requirement.

10.Units with colors are easy to identity and easy to manage network.

11.Be able to meet the allocation requirement of various work.



PARAMETER:

1) Contact resistance: <2.5m Ohm

2) Contact resistance of linker and lead: <2.5m Ohm

3) Insulation resistance: >1,000M Ohm

4) Withstand test voltage: DC 1,000V

5) Times of repetitive use: >=750

6) Designed and manufactured in accordance with ISO / IEC11801

standards

7) Design exceeds normal requirements

8) Colored component combinations for convenience of identification

and network management

9) Many other message modules available for wiring arrangements

10) Compatible with AMP keystone

11) Colors available: white, yellow, ivory, red, black, blue



FEATURE:

Connector class : Adapter

Number of connectors (A) :  2
Connector type (A) :  RJ45
Category connector (A) :  Cat.5
Shielding - connector (A) :  NO
Protection class (IP) connector (A) :  20
Color :  chrome
Material :  polycarbonate (PC) / acrylnitrile-butadiene-styrol (ABS)
Wiring diagram :  Jack A = pin 1+2/3+6, Jack B = pin 1+2/3+6
