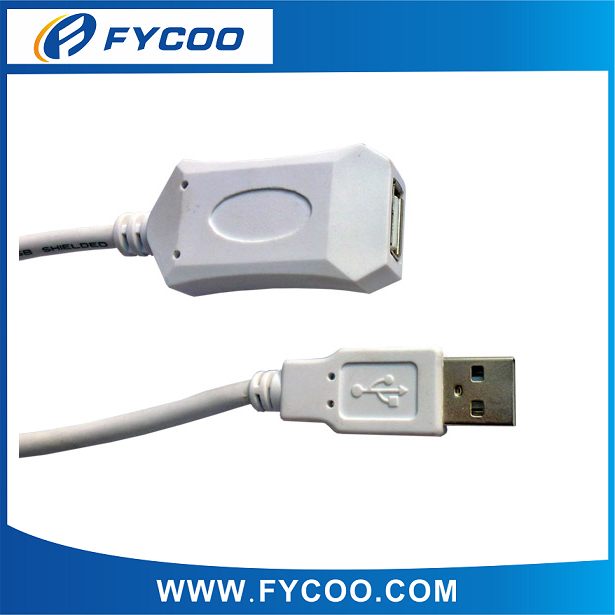

USB A MALE TO USB FEMALE CABLE

USB 2.0 Extension Cable

Model：FCEBE203

Specifications:

USB 2.0 Extension Cable

USB "A" MALE TO USB FEMALE

Connector : Nickel or Gold  plated

Conductor: Tinned Copper

Color: White

PVC molding;

Cable Specification:

UL2725 (20AWGx2C+28AWGx1P)+D+80B+PVC+ GL850 IC;  OD: 5.0MM

Length:5M

Cable specification :

20/28AWG：(20AWGx2C+28AWGx1P)+1Grould wire+80B+PVC+IC)

TINNED COPPER CONDUCTOR 80#Braind full copper,

AM TO AF, Chip: GL850, Ground wire connect steel shell, Pure white color

Electrical:

100% open & short test

HI-pot: DC 300v 10ms

Insulation Resistance:10MΩ /300V MIN

Contactivity: Resistance: 0.01Ω MAX

Working temperature: -25oC to +85oC

Package:

Polybag , PE bag ,blister
