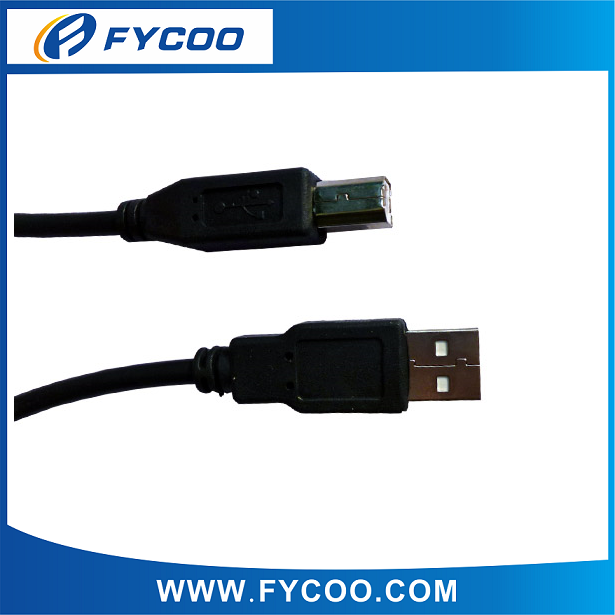

USB A MALE TO USB B MALE CABLE

USB AM TO BM Cable

Model：FCEBAB202

Specifications:

USB 2.0 cable

USB "A" MALE TO USB "B" MALE

Connector : Nickel or Gold  plated

Conductor: Copper

Color: Black

PVC molding;

Cable Specification:28#*1P+24#*2C+AEB

OD:4.5MM

Cable specification :

Cable USB2.0  AM TO BM，28#*1P+24#*2C+AEB OD4.5 BLACK COLOR

Electrical:

100% open & short test

HI-pot: DC 300v 10ms

Insulation Resistance:10MΩ /300V MIN

Contactivity: Resistance: 0.01Ω MAX

Working temperature: -25oC to +85oC

                  l

Package:

Polybag , PE bag ,blister
