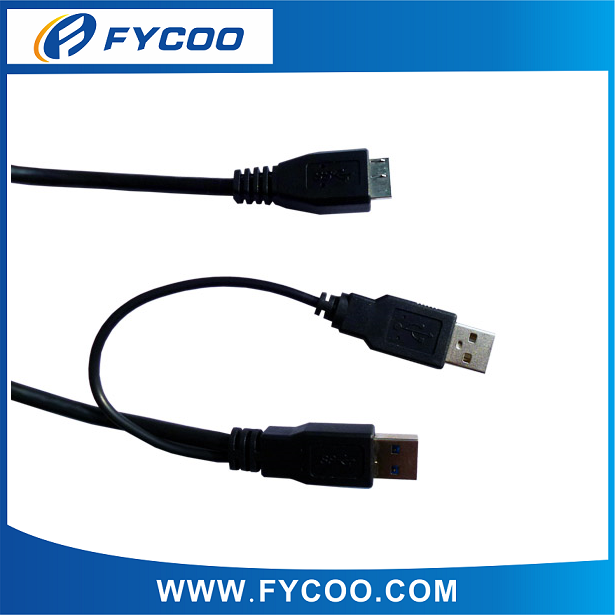

Y type USB cable, USB AM to AM +USB MICRO 5PIN cable

Model：FCEBAAC210

Specifications:

USB 2.0 Cable

Y type USB cable, USB AM to AM +USB MICRO 5PIN (70cm+20cm)long cable

Connector : Nickel or Gold  plated

Conductor: Copper

Color: Black or Begie

PVC molding

Cable specification :

USB MALE TO MICRO 5P MALE：70 cm

USB AM TO AM 5P Male：20cm

Naked copper 26AWG 28AWG cable, Aluminum Foil , with 96Braid, Black color

28#*1P+26#*2C+AL+D+96#

OD: :3.8MM ~4.5MM

Electrical:

100% open & short test

HI-pot: DC 300v 10ms

Insulation Resistance:10MΩ /300V MIN

Contactivity: Resistance: 0.01Ω MAX

Working temperature: -25oC to +85oC

                  l

Package:

Polybag , PE bag ,blister
