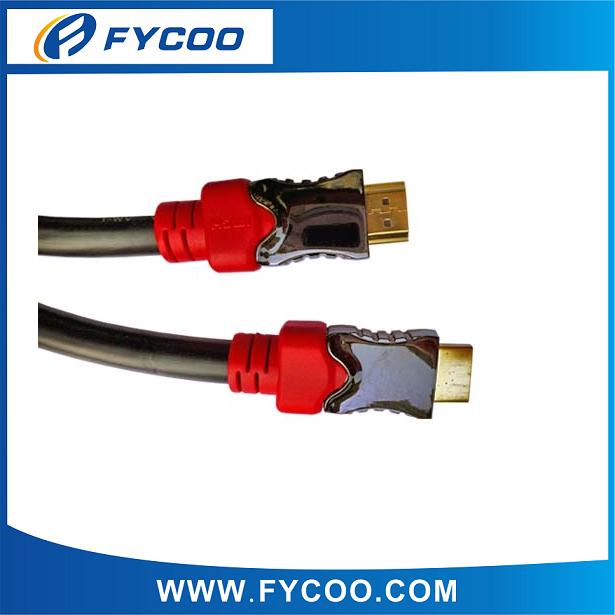

HDMI M TO M cable Metal casing type Chromium metal casing outer mold, shell color have Silver & red、Silver & black for choice

Model：FCEHMM14

Specifications:

Metal casing type HDMI cable, 19PIN M/M

24K gold plated or nickel plated connectors
PE inner mold, gold-plated copper shell

Chromium metal casing outer mold, shell color have Silver & red、Silver & black for choice

bare copper conductor, braided aluminum-magnesium wire

Cable specification :

1.3 Ver.
UL20276 30（28/26/24）＃（1P+D+A+MY)*4P+1P+5C+AB+Jacket   OD: 9.0MM

1.4 Ver.

UL20276 28(/26/24)＃(1P +D +AL +MY) x 5 +4C +AEB  OD: 9.0MM

Support: 1.3c/1.4 version, 1080P/1440P,10.2GGbps/15.2Gbps,

Features:

High Speed with Ethernet,Audio Ruturn Channel,Supports 3D,4K x 2K Video and more color spare

A premium quality version 1.3c/1.4 HDMI to HDMI cable is suitable for use in 3D HDTV,home theater,DVD player,PS3,Xbox360,Setbox and other HDMI devices

High density triple shielding for maximum rejection of EMI and RFI

Compatible with multiple audio formats from stereo to multichannel sound

Transfer digital audio and video signals at warp speed of 15.2GB per second

Electrical:

100% open and short test

Voltage: 300V DC, 5MΩ/10ms

Insulation resistance: 10MΩ minimum

Contact resistance: 2Ω maximum

Working temperature: -25 to 80 degree Celsius

Package:

 Polybag,Bubble blister
