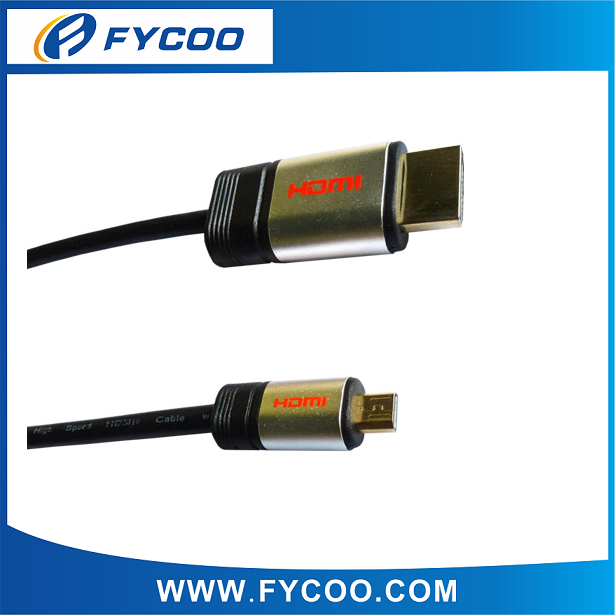

Name:Metal casing type Micro type A TO D HDMI M to M Cable
Model NO.:FCEHAD02

Product Description

Metal casing type Micro type A TO D HDMI M to M Cable





ModelFCEHAD02



Specifications:

Metal casing type Micro type A TO D HDMI M to M Cable, 19PIN M/M

24K gold plated or nickel plated connectors
PE inner mold, gold-plated copper shell

Aluminum alloy outer mold , shell color have blueredgoldsilver

bare copper conductor, braided aluminum-magnesium wire



Cable specification :

1.4 Ver.

32AWG(7/0.067TC*1P+D+A+MY)*5P+7/0.08TC*1P+7/0.08TC*2C+AL/MY+7/0.08TC+16/5*0.08TC PVC Jacket OD4.2MM

Support: 1.3c/1.4 version, 1080P/1440P,10.2GGbps/15.2Gbps, 3DTV,Ethernet



Features:

Where we use HDMI type D:

Mobile phones, portable media players, digital cameras, or any portable device where space is at a premium and HDMI quality is desired

What is HDMI type D:

Type D connector designed for cell phones, pocket cameras, and other portable devices where space is at a premium

Roughly the size of a micro USB connector, it packs all the power and functionality of an HDMI link into a tiny form factor

Featuring a full nineteen-pin array like other HDMI connectors, the HDMI micro connector can handle video signals up to 1,080p, bringing state-of-the-art HD resolutions to the realm of handheld devices This new connector is approximately 50% smaller than the size of the existing HDMI mini connector

Electrical:

100% open and short test

Voltage: 300V DC, 5MΩ/10ms

Insulation resistance: 10MΩ minimum

Contact resistance: 2Ω maximum

Working temperature: -25 to 80 degree Celsius



Package:

 Polybag,Bubble blister
