Name:New Model Fiber Optic Splice Closure Horizontal type two inlets/outlets(2Entry 2Exit PC Material)
Model NO.FCFEHP207

Product Description

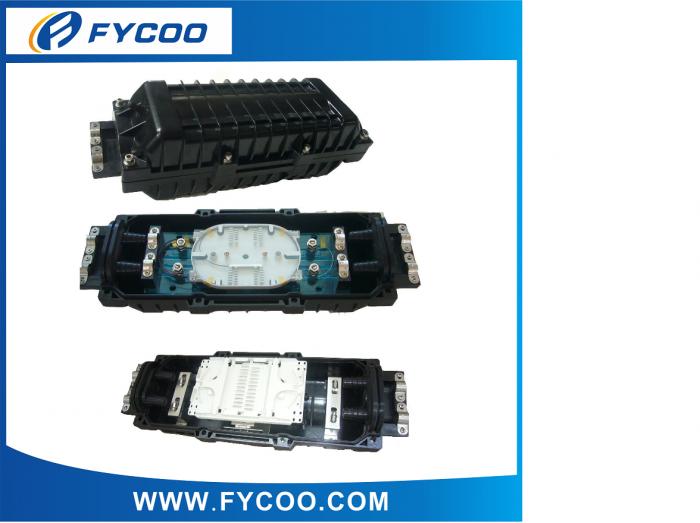

New Model Fiber Optic Splice Closure Horizontal type two inlets/outlets(2Entry 2Exit PC Material)


Type: Horizontal type Fiber Optic Closure two inlets/outlets(Optical fiber Joint Box) new design

Innovative design is horizontal type with one hinge in one side and open in another side. It is the most reliable FOSC with the simplest installation in the world. The FOSC is suitable for protecting fiber cable splices in straight-through and branching applications. Based on an advanced formula, the plastic parts are made of injection-molded, high-strength engineering plastic ABS or PC by numerical control equipment; therefore effectively prevent products from aging caused by coldness, heat, oxygen and ultraviolet radiation. The strong housing and main components provide fire resistant, waterproof, and quakeproof while protecting splices during pulling, compressing, and impacting, bending, tensioning, axial tensioning.
It ensures long-term reliability and usage under ambient temperature from -40℃ to +75℃


FEATURE:

Purpose: aerial, direct-burying, wall-mounting, Pipeline laying way
Dimension (CM):  58*19*15 CM
Cables Entry & Exit: 2 Entry  2 Exit
Cable Diameter (mm): Φ7-Φ25
Sealing Structure: silicon gum material Sealing
Material: PC
Maximum capacity: fasciculation type(144 cores);banding type(288 cores)
Components:Seal tape, Insulation tape, Nylon tie, optical cable heat shrinkable sleeve, mental hook, seal fittings, numeral bar, retaining ring
Span-life: 30 years.

SPECIFICATION:

Atmospheric pressure: 70∽106KPa
Optic property: The spare fiber coiled in the fiber emplacing device; the fiber connector won’t attenuate during the FOSC installation operation period.
Seal Performance: After the closures are sealed, then pressurized up to 100KPa±5KPa in water, immersed in 15 minutes, there are no air bubbles; Or observed for 24 hours, there is no change of air pressure.
Re-encapsulation Performance: The closures are pressurized up to 100KPa±5KPa in water, immersed in 15 minutes, there are no air bubbles; Or observed for 24 hours, there is no change of air pressure after three times of repeat encapsulation
Voltage-resistance strength: Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.
Insulation resistance: ≥2X104MΩ


APPLICATION:

 It is widely used for communication, network system, cabled T.V. of CATV, the fiber optic cable by network
