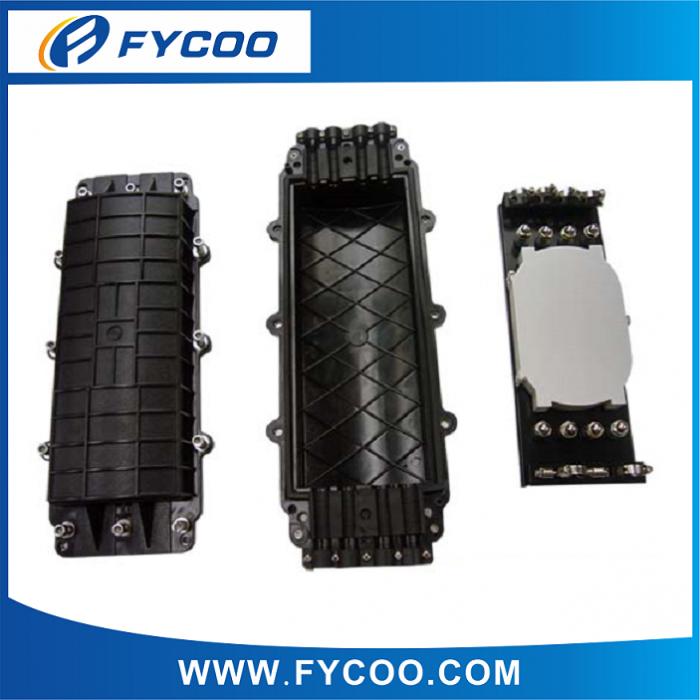

Name:Fiber Optic Splice Closure Horizontal type four inlets/outlets(4Entry 4Exit ABS Material)
Model NO.FCFEHA403

Product Description

Fiber Optic Splice Closure Horizontal type four inlets/outlets(4Entry 4Exit ABS Material)


Type: Horizontal type Fiber Optic Closure four inlets/outlets (Optical fiber Joint Box)

Innovative design is an erect and horizontal type with one hinge in one side and open in another side. It is the most reliable FOSC in the world. The FOSC is suitable for protecting fiber cable splices in straight-through and branching applications. Based on an advanced formula, the plastic parts are made of injection-molded, high-strength engineering plastic ABS or PC by numerical control equipment; therefore effectively prevent products from aging caused by coldness, heat, oxygen and ultraviolet radiation. The strong housing and main components provide fire resistant, waterproof, and quakeproof while protecting splices during pulling, compressing, and impacting, bending, tensioning, axial tensioning.
It ensures long-term reliability and usage under ambient temperature from -40℃ to +75℃

FEATURE:

Purpose: aerial, wall-mounting, Pipeline laying way
Dimension (CM):  46.7*18*12CM
Cables Entry & Exit: 4 Entry  4 Exit
Cable Diameter (mm): Φ7-Φ16
Sealing Structure: Silicon gum material Sealing
Material: ABS
Maximum capacity: fasciculation type(96 cores);banding type(192 cores)

SPAN-LIFE: 30 years.

SPECIFICATION:

Environmental temperature: -40℃ to +75℃
Atmospheric pressure: 70∽106KPa
Voltage-resistance strength: Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.
Insulation resistance: ≥2X104MΩ

APPLICATION:

It is widely used for communication, network system, cabled T.V. of CATV, the fiber optic cable by network
