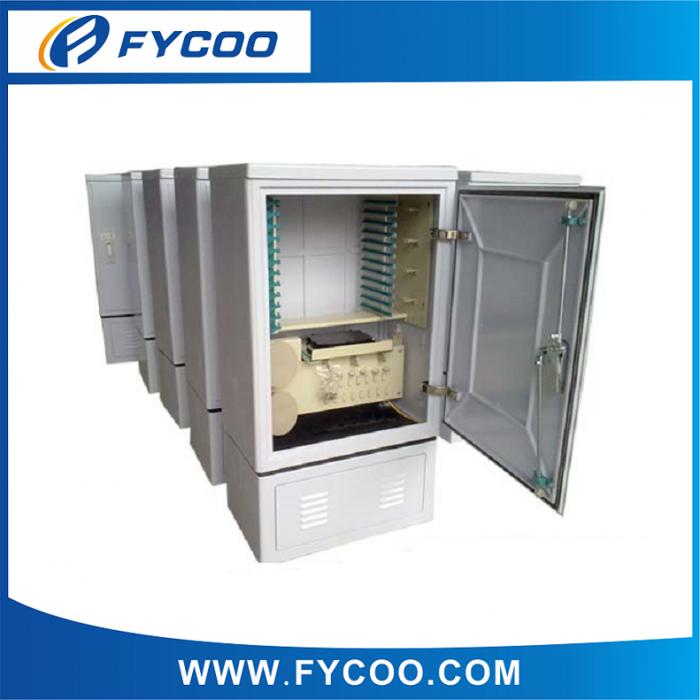

Name:	Fiber Optic Cross Connect Cabinet 144 cores
Model NO.	FCFB14403

Fiber Optic Cross Connect Cabinet 144 cores

Fiber optic cross connect cabinet is an outdoor optical equipment that is especially designed for outdoor optical nodes in access network.

SPECIFICATION:

Model:FCFB14403

Outdoor Floor Type, suit for SC,FC adapter, 2m length pigtail, and 2-3m patch cord.

Max. capacity of fiber: 144core

Dimension: 960×525×325mm

FEATURE:

1. High intensity and anti-erosion performance

2. Able to counter abrupt climate change and extreme environment

3. Capacity can be flexibly customized as required

4. Installation is quick and convenient

5. Built-in direct splice unit is capable for providing direct connection function.

6. Perfect design of fiber wiring routing could facilitate management and maintenance of fibers

7. With secure and reliable fastening and grounding protection devices for the optic fiber

8. Applicable to strap-shaped and non-strap shaped fibers

MATERIAL:

SMC, Cold-rolled steel or stainless steel

TECHNICAL PARAMETER:

1. Nominal work wave-length: 850nm, 1310nm, 1550nm

2. Operating temperature: -5℃-+40℃

3. Storage temperature: -40℃ +70℃

4. Relative humidity:≤85%(+30℃)

5. Atmospheric pressure: 70~106 KPa

6. Insertion loss: ≤0.2dB

7. Return loss:≥45dB (PC), ≥50dB(UPC), ≥60dB(APC)

8. Isolation resistance:≥1000MΩ/500V(DC)

9. Durability:＞1000 times

10.Anti-voltage strength: ≥3000V(DC)/1min

PACKING:

MODEL	SIZE	CAPACITY	ASSEMBLING	PACKING	PACKING SIZE	REMARK
FCFB4801	450×315×185mm	48 cores	Outdoor wall-mounted	PE bag+Foam+Carton	503824cm	suitable for adaptors such as FC,SC, length of pigtail can be 2m single-end, patch cable can be optional:2m~3m
FCFB9602	960×525×325mm	96 cores	Outdoor floor type	PE bag+Foam+Carton+Wooden case	6043109cm
FCFB14403	9600×525×325mm	144 cores	Outdoor floor type	PE bag+Foam+Carton+Wooden case	6043109cm
FCFB19204	1435750300 mm	192 cores	Outdoor floor type	PE bag+Foam+Carton+Wooden case	1570850450cm
FCFB28805	1450×750×325mm	288 cores	Outdoor floor type	PE bag+Foam+Carton+Wooden case	1570850450cm
FCFB57606	1450×750×620mm	576 cores	Outdoor floor type	PE bag+Foam+Carton+Wooden case	1570850750cm
