Name:Outdoor Wall-mount Fiber Optic Distribution Frame 8 cores
Model NO.FCFDO820

Product Description

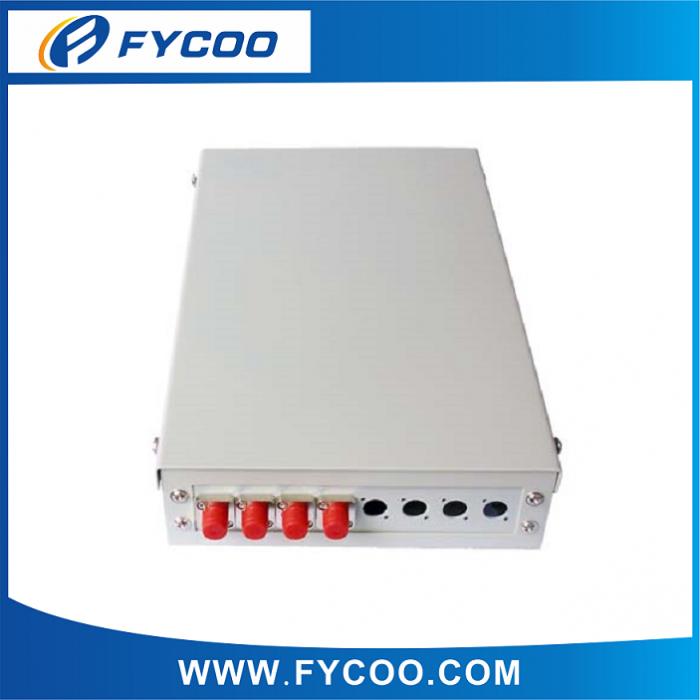

Outdoor Wall-mount Fiber Optic Distribution Frame 8 cores

Fiber quantity:  8 fibers
Outdoor Wall-mount Fiber Optic Distribution Frame is mainly used for connecting the outdoor optical cables, optical patch cords and optical pigtails. It can be wall mounted or pole mounted, and facilitates the test and refit of the lines.

SPECIFCIATION:

1.Material: Cold Rolled steel,
2.Surface cleaning and anti-static plastic plating
3.Operating temperature:-40℃  -   85℃
4.Operation humidity: ≤85% (30 ℃)
5.FC, SC, ST, LC adapters suitable

FEATURE:

1.With steel plates can manage both single fiber and ribbon & bundle fiber cables
2.FC, LC, SC, ST output interfaces optional
3.Large working space to integrate the pigtail, cables and adapters
4.Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite, easy for operation
5.Special design ensures the excess fiber cords and pigtails in good order
6.Inner components as follows:
   1)Fiber Optic Splice Tray: storing fiber connectors (together with the protective components) and the spare fibers
   2)Fixing Device: used for fixing the fiber protective tubes, the fiber reinforced cores and the distribution pigtails
   3)The brim of the box is sealed

APPLICATION:

Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV

KNOWLEDGE:
The fiber optic distribution frame, in one hand, there is the fiber optic cable, the other end is the pigtail, it is a equipment that one cable split into a single optical fiber.
the user cable terminal box mounted on the wall, whose function is to provide fiber transfer of welding and optical fiber splicing, fiber and pigtail connector. And fiber and its components to provide mechanical protection and environmental protection, and allow for proper inspection, so can keep high standard management of fiber optic
