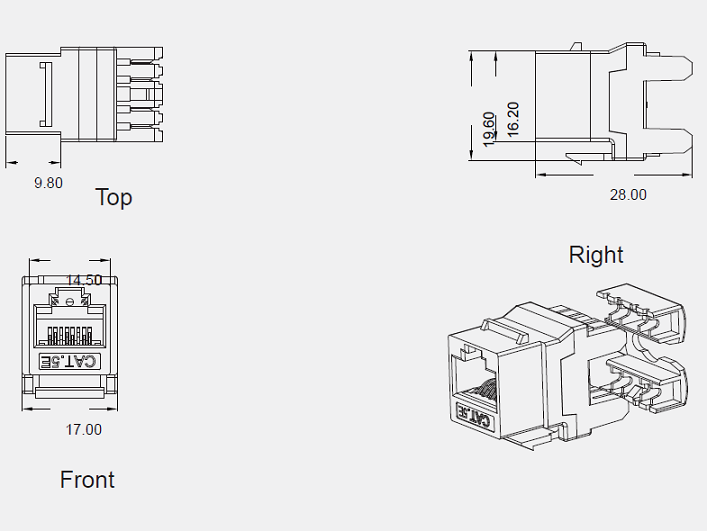

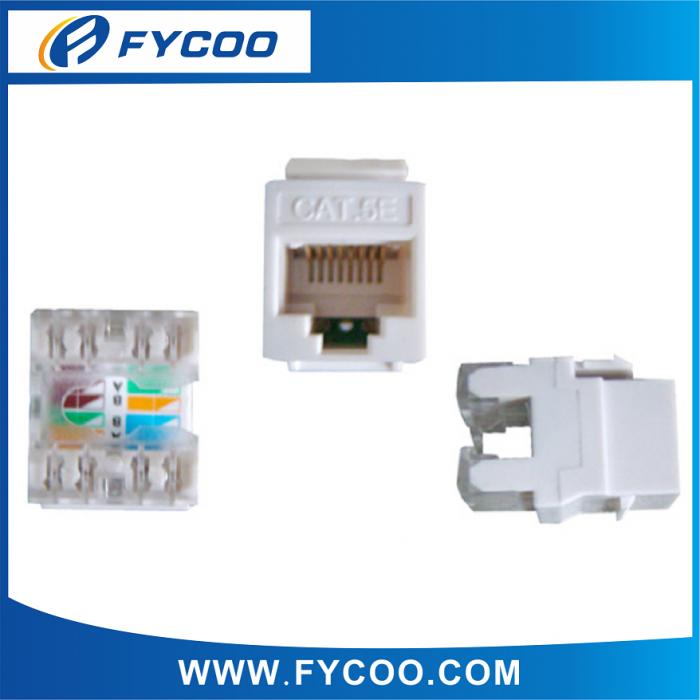

Name:	Cat.5e Keystone Jack 180 degree (Short Type)
Model NO.	FCKJ5U008

Main Describe of The Product:

1.Keystone Jack, CAT.5E Class E, UTP Typ e_. 180°punching

direction, for connecting application of communication ports

in working area.

2.A compact & ingenious designing, with the punching sequence

direction marks on the sides of keystone jack. That can provides

a correct and quick guide for punching and connecting operation.

And the fastener hats will make sure the cable can be fixed

reliably in the IDC clips.

3.According to the ISO/IEC 11801;2002 CLASS & ANSI/TIA/

EIA568-B.2-1CAT.5E T568A punching sequence and T568B

punching sequence are both compatible.

4.Connection Type: FCC connector for RJ45 patch cord and

IDC for 4-pair Cat.6 cables.

5.Fit for the CAT.5e general cable distribution system. Compatible

for Cat.5 and Cat.5e systems.

Technique Characteristics:

1.Material of plastic parts : PC UL94V-0.

2.Material of the FCC connectors' 8 pin: Phosphor Bronze with

golden cladding. Insertion Dependability: 750 times.

3.Material of the IDC Clips: Tinned phosphor bronze pins. Fit

for 22AWG/23AWG/24AWG Cables. Punching Short Type_;

4.Dependability: 250 times

5.Standard 110 Punching tool.
