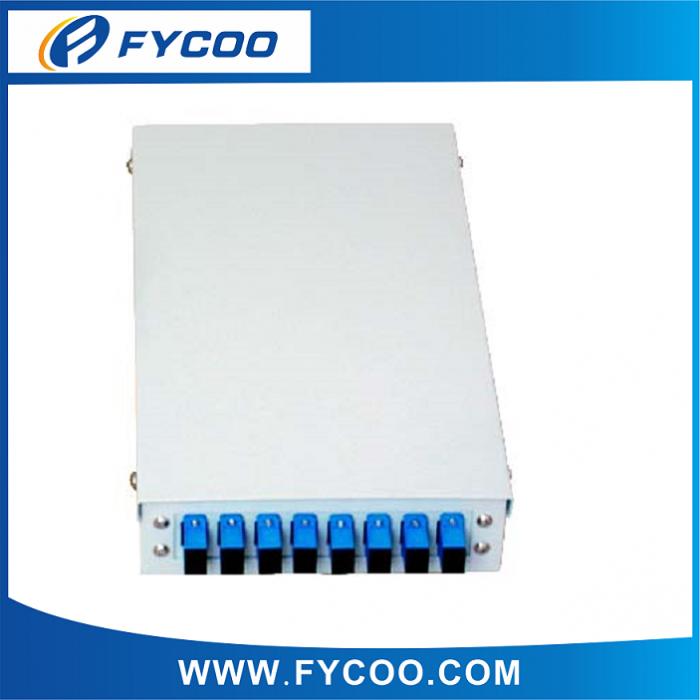

Name:Indoor Wall-mount Fiber Optic Distribution Frame 8 cores
Model NO.FCFDI815

Product Description

Indoor Wall-mount Fiber Optic Distribution Frame 8 cores


Fiber quantity: 8 fibers
Indoor Wall-mount Fiber Optic Distribution Frame can manage both single fiber and ribbon & bundle fiber cables for indoor using. There are FC, LC, SC, ST output interfaces optional, and large working space to integrate the pigtails, cables and adapters.


SPECIFCIATION:

1.Material: Cold Rolled steel,
2.Surface cleaning and anti-static plastic plating
3.Operating temperature:-40℃- 85℃
4.Operation humidity: ≤85% (30 ℃)
5.FC, SC, ST, LC adapters suitable


FEATURE:

1.With cold-roll steel box, splicing unit, distribution unit and panel
2.Various panel plate to fit different adapter interface
3.Adapters can be installed: FC, SC, ST, LC
4.Suitable for single fiber and ribbon & bundle fiber cables
5.Special design ensures the excess fiber cords and pigtails in good order
6.No interval and easy for management and operation


APPLICATION:

Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV

KNOWLEDGE:
The fiber optic distribution frame, in one hand, there is the fiber optic cable, the other end is the pigtail, it is a equipment that one cable split into a single optical fiber.
the user cable terminal box mounted on the wall, whose function is to provide fiber transfer of welding and optical fiber splicing, fiber and pigtail connector. And fiber and its components to provide mechanical protection and environmental protection, and allow for proper inspection, so can keep high standard management of fiber optic
