Product Description

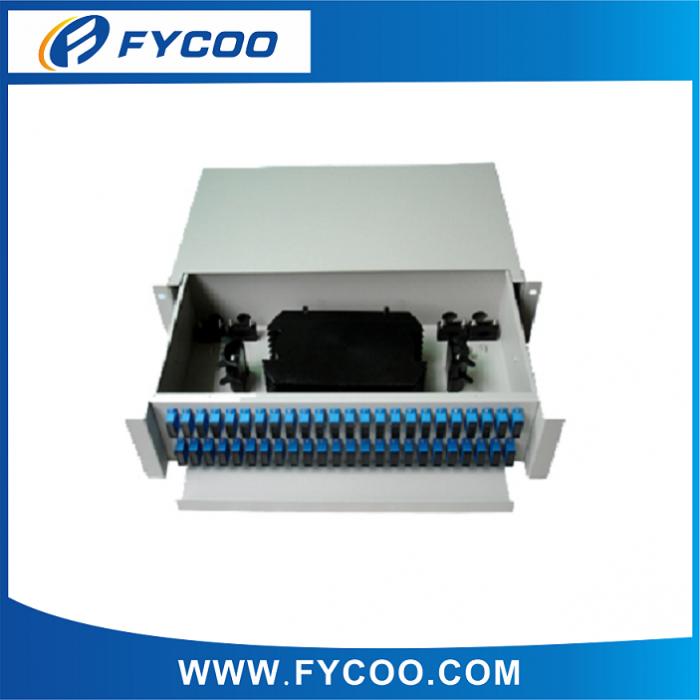

Slidable Rack-mount Fiber Optic Distribution Frame 96 cores (Drawer type)
Fiber quantity:96 fibers
Slidable Rack-mount Fiber Optic Distribution Frame has aluminum sliding fittings with self-locking functions prevent the drawer from falling when moved; 19-inch rack mount for ST, SC, LC, MTRJ, FC adapters. The drawer is the holding board for splicing, easy to withdraw the fibers when testing and distributing.
SPECIFCIATION:
1.Material: Cold Rolled steel,
2.Surface cleaning and anti-static plastic plating
3.Operating temperature:-40℃- 85℃
4.Operation humidity: ≤85% (30 ℃)
5.ST, SC, LC, MTRJ, FC adapters suitable
Model |
Core Count |
Height |
Dimension(cm) |
Weight(kg) |
FCFDS1207 |
12 |
1U |
45x 32x4.45 |
4 |
FCFDS2408 |
24 |
1U |
45x 32x4.45 |
4.2 |
FCFDS4809 |
48 |
2U |
48x32x8.9 |
4.31 |
FCFDS9610 |
96 |
2.5U |
48x32x11 |
5.05 |
FEATURE:
1.Standard size, light weight and reasonable structure
2.Slide out drawer for easy cable management
3.Suitable for ribbon and single fiber
4.Compact design for space saving
5.Various panel plate to fit different adapter interface
6.Front mark on the plate is easy for identification and operation
7.Easy for management and operation
APPLICATION:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
