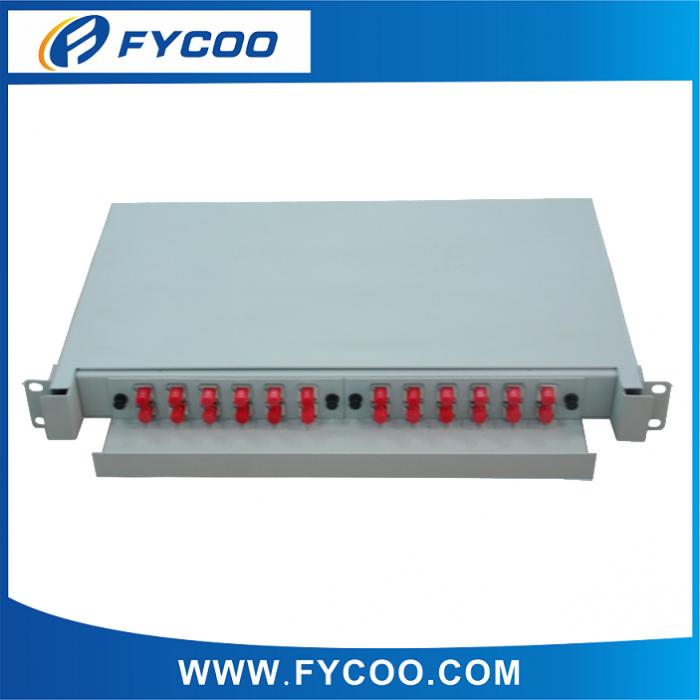

Name:Slidable Rack-mount Fiber Optic Distribution Frame 24 cores (Drawer type)
Model NO.FCFDS2408

Product Description

Slidable Rack-mount Fiber Optic Distribution Frame 24 cores (Drawer type)


Fiber quantity:24 fibers
Slidable Rack-mount Fiber Optic Distribution Frame has aluminum sliding fittings with self-locking functions prevent the drawer from falling when moved; 19-inch rack mount for ST, SC, LC, MTRJ, FC adapters. The drawer is the holding board for splicing, easy to withdraw the fibers when testing and distributing.


SPECIFCIATION:

1.Material: Cold Rolled steel,
2.Surface cleaning and anti-static plastic plating
3.Operating temperature:-40℃- 85℃
4.Operation humidity: ≤85% (30 ℃)
5.ST, SC, LC, MTRJ, FC adapters suitable

Model

Core Count

Height

Dimension(cm)

Weight(kg)

FCFDS1207

12

1U

45x 32x4.45

4

FCFDS2408

24

1U

45x 32x4.45

4.2

FCFDS4809

48

2U

48x32x8.9

4.31

FCFDS9610

96

2.5U

48x32x11

5.05



FEATURE:

1.Standard size, light weight and reasonable structure
2.Slide out drawer for easy cable management
3.Suitable for ribbon and single fiber
4.Compact design for space saving
5.Various panel plate to fit different adapter interface
6.Front mark on the plate is easy for identification and operation
7.Easy for management and operation

APPLICATION:

Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
