Name:	SC Fiber Optic Connector
FCFCSS01	SM，SIMPLEX 0.9MM/2.0MM/3.0MM
FCFCSM02	MM，SIMPLEX 0.9MM/2.0MM/3.0MM
FCFCSA03	APC，SIMPLEX 0.9MM/2.0MM/3.0MM
FCFCSS04	SM，SIMPLEX 2.0MM/3.0MM

Product Description

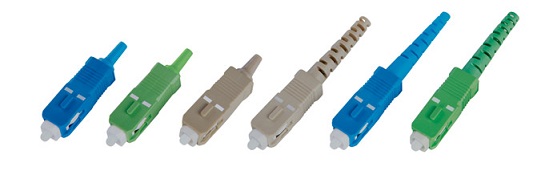

SC Fiber Optic Connector

SPECIFICATION:

1.Low insertion loss and back reflection loss

2.Ferrule end surface pre-domed

3.Precision anti-rotation key and corrosion resistant body

4.UL-rated plastic housing

5.Telcordia style boots

6.Free-floating ceramic ferrule

APPLICATIONS:

--Gigabit Ethernet; Active device termination; Telecommunication networks; Video; Multimedia; Industrial; Military; Premise installations;

PARAMETER TABLE:

	Singlemode Multimode
Insertion loss:	＜0.1dB ＜0.15dB
Return loss:	≥55dB
	≥65dB(APC)
Durability:	＜0.1dB typical change,500 mating
Operating Temperature:	-40 to +75℃ -40 to +75℃

ORDERING CHOICE:

1.SC SM SX PC

MM DX APC

2.Ferrule size: 125.0μm, 125.3μm, 125.5μm 126.0μm, 127.0μm, 128.0μm

3.Ferrule type (for APC): Stepped; Conical

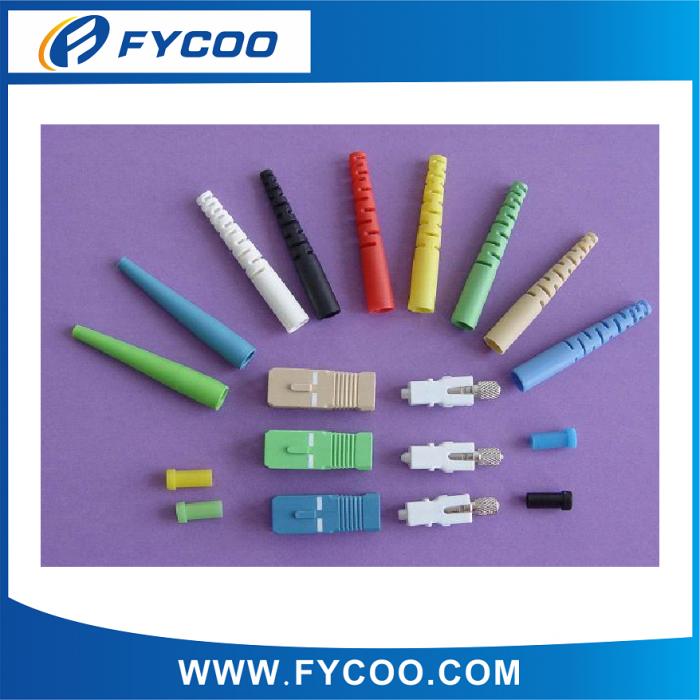

4.Boot type: slotted boot, smooth boot.

5.Boot size: 0.9mm; 2.0mm; 3.0mm

6.Boot color: Beige; Black; Blue; Grey; Red; White; Yellow

7.Housing Color: Beige; Blue; Red
